NSN 4730-00-052-9349
Part Details | PIPE BUSHING
4730-00-052-9349 A fitting with pipe threads having a female connection inside of a male connection, used in conjunction with another fitting, to connect in the same line, two pipes of different sizes.
Alternate Parts: PL522, PL5-22, 4730-00-052-9349, 00-052-9349, 4730000529349, 000529349
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | JAN 01, 1963 | 00-052-9349 | 03779 ( BUSHING, PIPE ) |
REFERENCE DRAWINGS & PICTURES

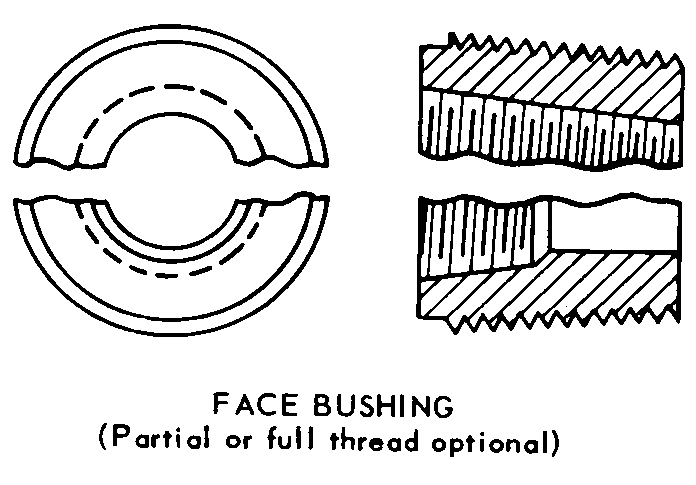

FACE BUSHING
Cross Reference | NSN 4730-00-052-9349
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| PL5-22 | 05852 | BARNSTEAD THERMOLYNE CORPORATIONDBA BARNSTEAD INTERNATIONAL DIV |
Technical Data | NSN 4730-00-052-9349
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY |
| STYLE DESIGNATOR | FACE BUSHING |
| EXTERNAL THREAD SIZE | 1/4-18 |
| EXTERNAL SCREW THREAD SERIES DESIGNATOR | NPT |
| EXTERNAL THREAD DIRECTION | RIGHT-HAND |
| INTERNAL THREAD SIZE | 1/8-27 |
| INTERNAL SCREW THREAD SERIES DESIGNATOR | NPT |
| INTERNAL THREAD DIRECTION | RIGHT-HAND |
