NSN 4730-00-057-2663
Part Details | PIPE UNION
4730-00-057-2663 A straight pipe fitting designed to join two lengths of pipe or pipe fittings in such a manner that they may be disconnected without disturbing the rest of the pipe line. The end connections have pipe threads or are unthreaded and designed to accommodate a pipe.
Alternate Parts: M11831031N1, M1183/10-31N1, M11831011N1, M1183/10-11N1, MILF11831012A3, MIL-F-1183/10-12-A-3, A3177832, A317783-2, 4730-00-057-2663, 00-057-2663, 4730000572663, 000572663
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | JAN 01, 1961 | 00-057-2663 | 03785 ( UNION, PIPE ) |
REFERENCE DRAWINGS & PICTURES

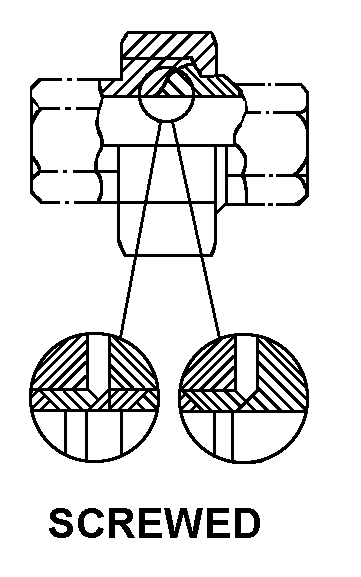

SCREWED
Cross Reference | NSN 4730-00-057-2663
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| M1183/10-31N1 | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
| M1183/10-11N1 | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
| MIL-F-1183/10-12-A-3 | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
| A317783-2 | 80020 | NAVAL AIR WARFARE CENTER AIRCRAFTDIVISION CODE 4.8.8.0.0.B BLDG 148-2 |
Technical Data | NSN 4730-00-057-2663
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | SCREWED |
| NOMINAL OVERALL LENGTH | 2.270 INCHES |
| SEAT TYPE | BEVELED |
| COUPLING FLANGE SHAPE | ROUND |
| REDUCER TYPE | CONCENTRIC |
| SPECIFICATION/STANDARD DATA | 81349-MIL-F-1183J GOVERNMENT SPECIFICATION |
| NONDEFINITIVE SPEC/STD DATA | 4 FIGURE |
