NSN 4730-00-058-0383
Part Details | LUBRICATING OIL CUP
4730-00-058-0383 An item designed to be driven or threaded into a machine part for the purpose of dispensing oil to a lubricating passage or duct, and to seal the passage or duct against dirt and moisture. The item does not have a transparent body, or contain a wick or needle to restrict or filter the flow.
Alternate Parts: 803STYLEY, 803STYLEY, 4730-00-058-0383, 00-058-0383, 4730000580383, 000580383
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | JAN 01, 1963 | 00-058-0383 | 03179 ( CUP, OIL, LUBRICATING ) |
REFERENCE DRAWINGS & PICTURES

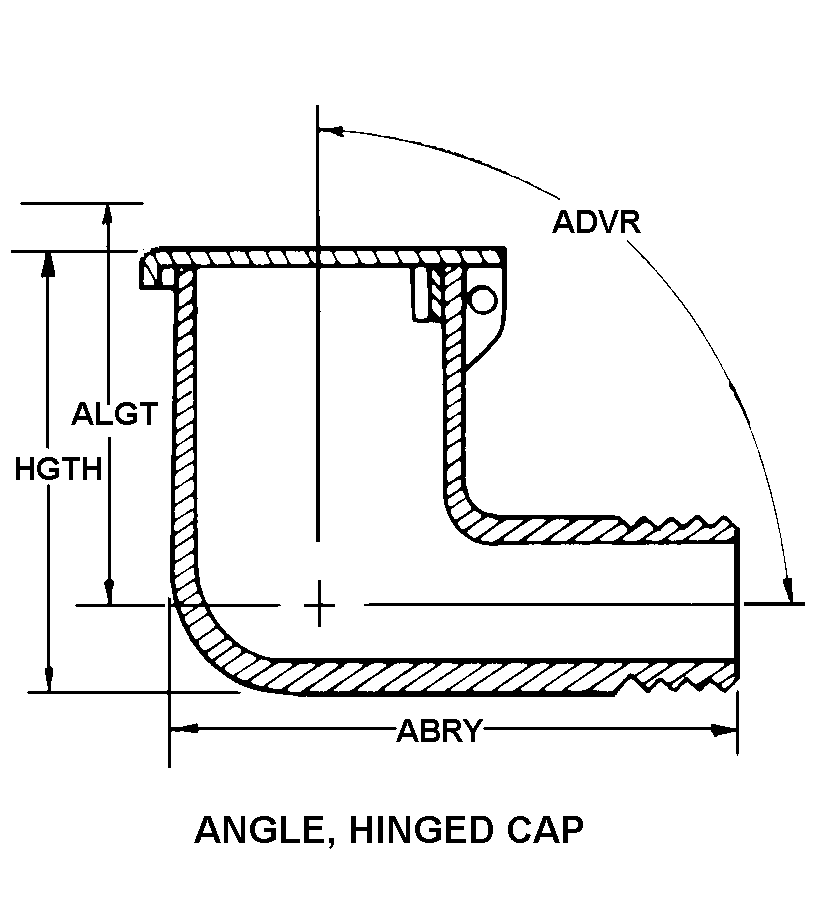

ANGLE, HINGED CAP
Cross Reference | NSN 4730-00-058-0383
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 803STYLEY | 24981 | APACHE CORPGITS BROS MFG CO |
| 803STYLEY | 0BT82 | GITS MFG CO INC |
Technical Data | NSN 4730-00-058-0383
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | ANGLE, HINGED CAP |
| LENGTH | 1.688 INCHES NOMINAL |
| ANGLE IN DEG | 90.0 |
| ASSEMBLY CLEARANCE RADIUS | 1.312 INCHES NOMINAL |
| HEIGHT | 1.375 INCHES NOMINAL |
| NOMINAL THREAD SIZE | 0.125 INCHES |
| THREAD QUANTITY PER INCH | 27 |
| OIL CAPACITY | 3.000 FLUID OUNCES |
| WIDTH ACROSS FLATS | 0.438 INCHES NOMINAL |
