NSN 4730-00-060-6823
Part Details | FLUID PASSAGE BOLT
4730-00-060-6823 A boltlike item having a concentric hole along the longitudinal centerline which may extend a part or the full length of the item. It has a hole(s) perpendicular to the axis, joining or passing through the concentric hole along the longitudinal centerline. The item is designed to distribute fluid, air, or lubricant through its body to a mating item, such as a CONNECTOR, MULTIPLE, FLUID PRESSURE LINE, bearing(s), bushing(s), or the like. The item must be capable of attaching to a block fitting and/or a tubing line or be designed to accommodate a FITTING, LUBRICATION. Excludes BOLT, INTERNALLY RELIEVED BODY; BLEEDER VALVE, HYDRAULIC SYSTEM; and BUSHING, MACHINE THREAD. See also PIN, VEHICULAR LEAF SPRING SHACKLE.
Alternate Parts: 3915961, 391596-1, 3915961, 391596-1, 4730-00-060-6823, 00-060-6823, 4730000606823, 000606823
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | JUN 13, 1967 | 00-060-6823 | 18683 ( BOLT, FLUID PASSAGE ) |
REFERENCE DRAWINGS & PICTURES
RELIEVED
PLAIN
PLAIN

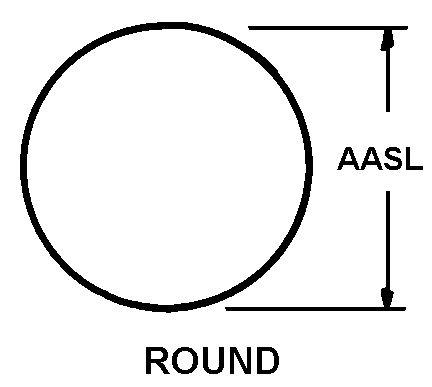

ROUND
Cross Reference | NSN 4730-00-060-6823
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 391596-1 | 52916 | CAPRICE ENGINEERING COMPANY INCDBA CAPRICE ENG CO |
| 391596-1 | 98897 | LOCKHEED MARTIN CORPORATIONDBA LOCKHEED MARTIN AERONAUTICS |
Technical Data | NSN 4730-00-060-6823
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 2014 |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-225 TO 4 FED SPEC SINGLE MATERIAL RESPONSE |
| SURFACE TREATMENT | ANODIZE |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625 MIL SPEC SINGLE TREATMENT RESPONSE |
| BODY STYLE | 7 RELIEVED |
| CONCENTRIC HOLE DEPTH | 0.968 INCHES NOMINAL |
| CONCENTRIC HOLE DIAMETER | 0.427 INCHES NOMINAL |
| OVERALL LENGTH | 1.437 INCHES NOMINAL |
| FIRST DIAMETER FROM WRENCHING FEATURE | 0.498 INCHES NOMINAL |
| LENGTH FROM BEARING SURFACE OF WRENCHING FEATURE TO END OF FIRST DIAMETER | 0.875 INCHES NOMINAL |
| FIRST RADIAL FLUID HOLE DIAMETER | 0.344 INCHES NOMINAL |
| DISTANCE FROM FIRST RADIAL HOLE CENTER TO END OF BOLT | 0.812 INCHES NOMINAL |
| LENGTH FROM BEARING SURFACE OF WRENCHING FEATURE TO BOLT END | 0.950 INCHES NOMINAL |
| WRENCHING FEATURE HEIGHT | 0.187 INCHES NOMINAL |
| FIRST END CONNECTION TYPE | THREADED EXTERNAL TUBE |
| FIRST END STYLE DESIGNATOR | PLAIN |
| FIRST END THREAD SERIES DESIGNATOR | UNF |
| FIRST END NOMINAL THREAD SIZE | 0.312 INCHES |
| FIRST END THREAD CLASS | 3A |
| FIRST END THREAD DIRECTION | RIGHT-HAND |
| FIRST END THREAD LENGTH | 0.500 INCHES NOMINAL |
| WRENCHING FEATURE STYLE | ROUND |
| HEAD DIAMETER | 0.720 INCHES NOMINAL |
