NSN 4730-00-062-4177
Part Details | TUBE CAP
4730-00-062-4177 A tube fitting primarily designed for permanent installation during tubing system operation to fit over or butt against a tube or fitting for sealing. See also CAP, PROTECTIVE, DUST AND MOISTURE SEAL and CAP-PLUG, PROTECTIVE, DUST AND MOISTURE SEAL.
Alternate Parts: MPL904081, MPL90408-1, MPL904081, MPL90408-1, 63977, 259P04, 259-P-04, 59P4, 59P-4, 4730-00-062-4177, 00-062-4177, 4730000624177, 000624177
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | JAN 01, 1963 | 00-062-4177 | 06074 ( CAP, TUBE ) |
REFERENCE DRAWINGS & PICTURES

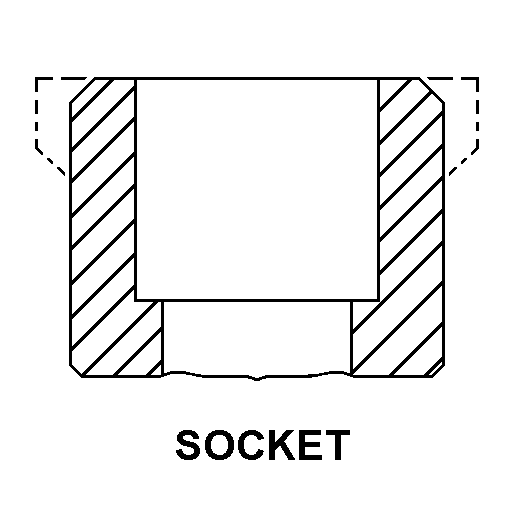

SOCKET

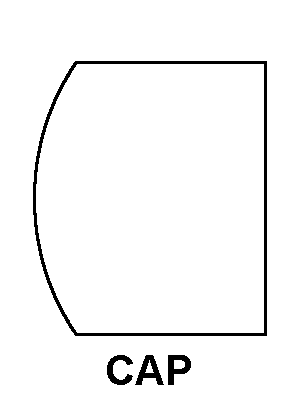

CAP
Cross Reference | NSN 4730-00-062-4177
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MPL90408-1 | 5RQL2 | DRS ENVIRONMENTAL SYSTEMS, INC.DBA D R S |
| MPL90408-1 | 90598 | ENGINEERED AIR SYSTEMS INC.DBA DRS SUSTAINMENT SYSTEMS |
| 63977 | 30327 | IMPERIAL |
| 259-P-04 | 30327 | IMPERIAL |
| 59P-4 | 93061 | PARKER-HANNIFIN CORPORATIONDBA FLUID SYSTEM CONNECTORS DIVISION |
Technical Data | NSN 4730-00-062-4177
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | CAP |
| CONNECTION STYLE | SOCKET |
| SEAT ANGLE | 30.0 DEGREES |
| TUBE OUTSIDE DIAMETER FOR WHICH DESIGNED | 0.250 INCHES NOMINAL |
