NSN 4730-00-065-8679
Part Details | TUBE COUPLING NUT
4730-00-065-8679 An internally threaded nut which has either an internal seat or shoulder and/or is designed to be used with a ferrule, to mate with the seat of an externally threaded tube fitting to form a leakproof connection. Excludes NUT (1), TUBE COUPLING, REDUCING; and NUT (1), UNION.
Alternate Parts: 101FN, FN0356, FN03-56, 9995431, 4730-00-065-8679, 00-065-8679, 4730000658679, 000658679
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | JAN 01, 1963 | 00-065-8679 | 03859 ( NUT, TUBE COUPLING ) |
REFERENCE DRAWINGS & PICTURES

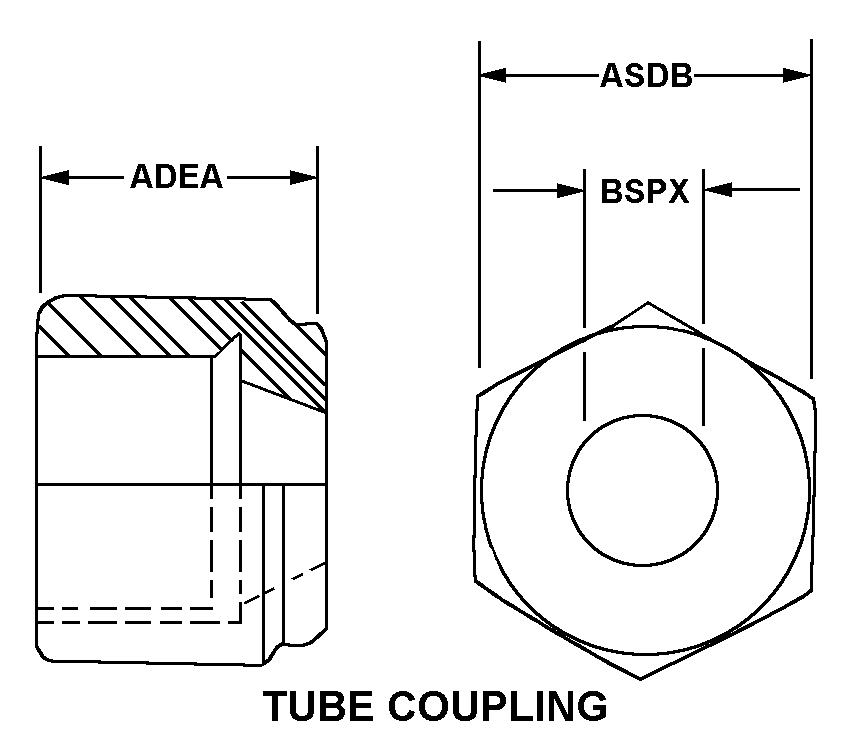

TUBE COUPLING
Cross Reference | NSN 4730-00-065-8679
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 101FN | 30327 | IMPERIAL |
| FN03-56 | 30327 | IMPERIAL |
| 9995431 | 18876 | U S ARMY AVIATION AND MISSILECOMMAND |
Technical Data | NSN 4730-00-065-8679
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNS |
| NOMINAL THREAD SIZE | 0.500 INCHES |
| THREAD QUANTITY PER INCH | 27 |
| THREAD CLASS | 2B |
| THREAD DIRECTION | RIGHT-HAND |
| NUT STYLE | TUBE COUPLING |
| NUT HEIGHT | 0.484 INCHES NOMINAL |
| WIDTH ACROSS FLATS | 0.625 INCHES NOMINAL |
| SMALLEST INSIDE DIAMETER | 0.381 INCHES NOMINAL |
| FABRICATION METHOD | STAMPED |
| NOMINAL TUBE OUTSIDE DIAMETER | 0.312 INCHES |
