NSN 4730-00-066-8725
Part Details | FLUID PASSAGE BOLT
4730-00-066-8725 A boltlike item having a concentric hole along the longitudinal centerline which may extend a part or the full length of the item. It has a hole(s) perpendicular to the axis, joining or passing through the concentric hole along the longitudinal centerline. The item is designed to distribute fluid, air, or lubricant through its body to a mating item, such as a CONNECTOR, MULTIPLE, FLUID PRESSURE LINE, bearing(s), bushing(s), or the like. The item must be capable of attaching to a block fitting and/or a tubing line or be designed to accommodate a FITTING, LUBRICATION. Excludes BOLT, INTERNALLY RELIEVED BODY; BLEEDER VALVE, HYDRAULIC SYSTEM; and BUSHING, MACHINE THREAD. See also PIN, VEHICULAR LEAF SPRING SHACKLE.
Alternate Parts: 104258, 4730-00-066-8725, 00-066-8725, 4730000668725, 000668725
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | JAN 01, 1963 | 00-066-8725 | 18683 ( BOLT, FLUID PASSAGE ) |
REFERENCE DRAWINGS & PICTURES
PLAIN
GASKET SEAL COMPRESSION
PLAIN
GASKET SEAL COMPRESSION
PLAIN

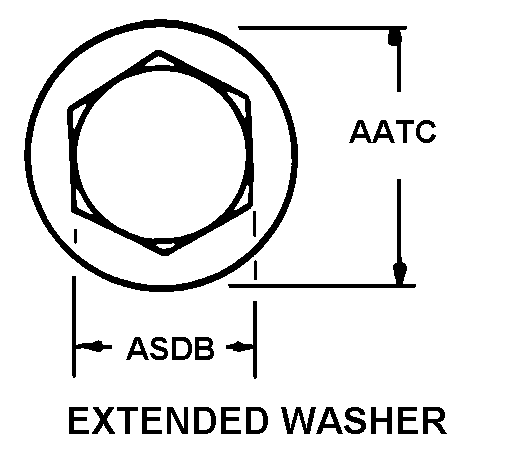

EXTENDED WASHER
Cross Reference | NSN 4730-00-066-8725
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 104258 | 73370 | HONEYWELL INTERNATIONAL INCDBA HONEYWELL DIV CONSUMER PRODUCTS |
Technical Data | NSN 4730-00-066-8725
| Characteristic | Specifications |
|---|---|
| MATERIAL | 0$DST1020 |
| MATERIAL DOCUMENT AND CLASSIFICATION | 66 FED STD SINGLE MATERIAL RESPONSE |
| SURFACE TREATMENT | 0$DZNA000 |
| BODY STYLE | PLAIN |
| CONCENTRIC HOLE DEPTH | 0.937 INCHES NOMINAL |
| CONCENTRIC HOLE DIAMETER | 0.125 INCHES NOMINAL |
| OVERALL LENGTH | 1.610 INCHES MINIMUM AND 1.660 INCHES MAXIMUM |
| FIRST DIAMETER FROM WRENCHING FEATURE | 0.438 INCHES MINIMUM AND 0.448 INCHES MAXIMUM |
| LENGTH FROM BEARING SURFACE OF WRENCHING FEATURE TO END OF FIRST DIAMETER | 0.125 INCHES NOMINAL |
| FIRST RADIAL FLUID HOLE DIAMETER | 0.062 INCHES NOMINAL |
| DISTANCE FROM FIRST RADIAL HOLE CENTER TO END OF BOLT | 0.793 INCHES MINIMUM AND 0.813 INCHES MAXIMUM |
| LENGTH FROM BEARING SURFACE OF WRENCHING FEATURE TO BOLT END | 1.230 INCHES MINIMUM AND 1.250 INCHES MAXIMUM |
| WRENCHING FEATURE HEIGHT | 0.380 INCHES MINIMUM AND 0.410 INCHES MAXIMUM |
| FIRST END CONNECTION TYPE | THREADED EXTERNAL TUBE |
| FIRST END STYLE DESIGNATOR | PLAIN |
| FIRST END THREAD SERIES DESIGNATOR | UNF |
| FIRST END NOMINAL THREAD SIZE | 0.438 INCHES |
| FIRST END THREAD CLASS | 2A |
| FIRST END THREAD DIRECTION | RIGHT-HAND |
| FIRST END THREAD LENGTH | 1.105 INCHES MINIMUM AND 1.125 INCHES MAXIMUM |
| SECOND END CONNECTION TYPE | THREADED INTERNAL PIPE |
| SECOND END STYLE DESIGNATOR | 0 GASKET SEAL COMPRESSION |
| SECOND END THREAD SERIES DESIGNATOR | NPTF |
| SECOND END NOMINAL THREAD SIZE | 0.062 INCHES |
| SECOND END THREAD DIRECTION | RIGHT-HAND |
| WRENCHING FEATURE STYLE | EXTENDED WASHER |
| EXTENDED WASHER DIAMETER | 0.865 INCHES MINIMUM AND 0.885 INCHES MAXIMUM |
| WIDTH ACROSS FLATS | 0.615 INCHES MINIMUM AND 0.625 INCHES MAXIMUM |
