NSN 4730-00-068-4943
Part Details | SOIL PIPE INCREASER
4730-00-068-4943 A straight fitting with the hub end larger than the spigot end. It is used to connect two pieces of soil pipe of different size.
Alternate Parts: WWP401, 4730-00-068-4943, 00-068-4943, 4730000684943, 000684943
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | JAN 01, 1963 | 00-068-4943 | 03794 ( INCREASER, SOIL PIPE ) |
REFERENCE DRAWINGS & PICTURES

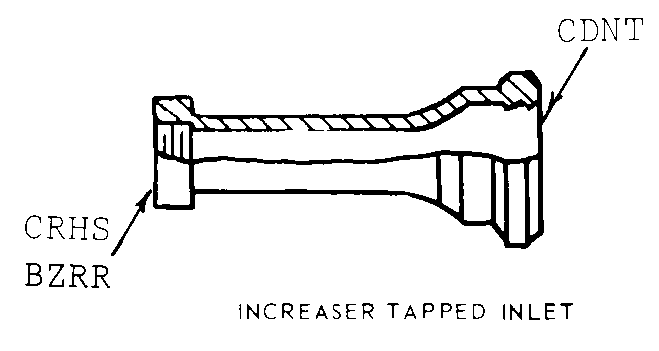

INCREASER TAPPED INLET
Cross Reference | NSN 4730-00-068-4943
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| WWP401 | 81348 | FEDERAL SPECIFICATIONSPROMULGATED BY GENERAL SERVICES |
Technical Data | NSN 4730-00-068-4943
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | INCREASER TAPPED INLET |
| OUTLET NOMINAL PIPE SIZE ACCOMMODATED | 5.000 INCHES |
| INLET NOMINAL THREAD SIZE | 4.000 INCHES |
| THREAD SERIES | NPT |
| MATERIAL | IRON CAST |
| WALL THICKNESS DESIGNATION | SERVICE WEIGHT |
| SPECIAL FEATURES | 12 IN. LG O/A |
| NONDEFINITIVE SPEC/STD DATA | SV CLASS |
