NSN 4730-00-068-5756
Part Details | TUBE COUPLING INVERTED NUT
4730-00-068-5756 An externally threaded fastening device which has an internal or external seat, designed to mate with the seat of an internally threaded tube fitting for the purpose of securing the tube to the fitting to form a leakproof connection.
Alternate Parts: CGA584, CGA580, CGA584, 4730-00-068-5756, 00-068-5756, 4730000685756, 000685756
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | JUL 05, 1967 | 00-068-5756 | 03857 ( INVERTED NUT, TUBE COUPLING ) |
REFERENCE DRAWINGS & PICTURES

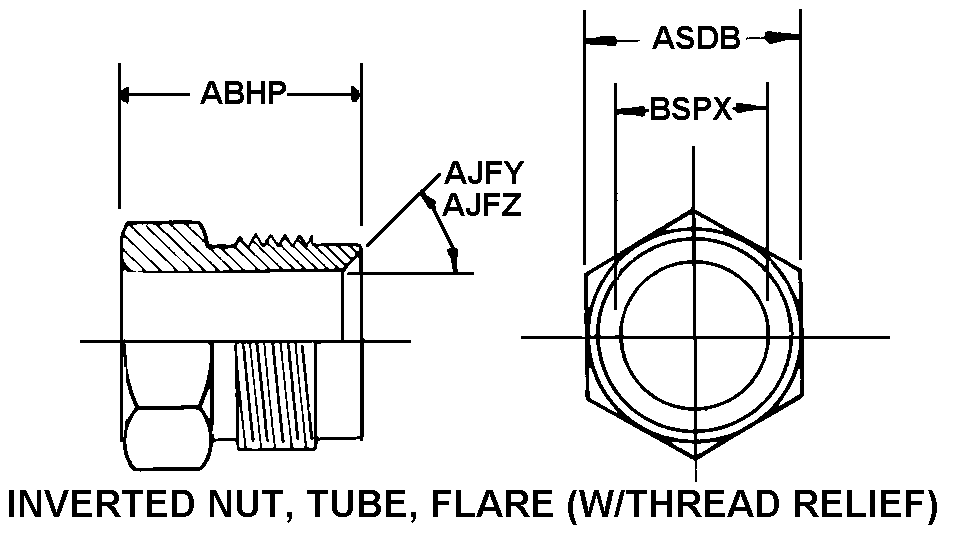

INVERTED NUT, TUBE, FLARE
Cross Reference | NSN 4730-00-068-5756
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| CGA584 | 94080 | AIRCO WELDING PRODUCTSDIV OF BOC GROUP INC |
| CGA580 | 94080 | AIRCO WELDING PRODUCTSDIV OF BOC GROUP INC |
| CGA584 | 79343 | SCIENCE APPLICATIONS INTERNATIONALCORPORATION |
Technical Data | NSN 4730-00-068-5756
| Characteristic | Specifications |
|---|---|
| FABRICATION METHOD | BAR STOCK, MACHINED |
| STYLE DESIGNATOR | INVERTED NUT, TUBE, FLARE |
| THREAD SIZE | 0.960-14 |
| SCREW THREAD SERIES DESIGNATOR | NGO |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
