NSN 4730-00-070-1593
Part Details | TUBE FITTING BRAZING FERRULE
4730-00-070-1593 A flanged cylindrical metallic item designed to be slipped over tubing and brazed in place. The rear face of the flange forms a bearing surface for the coupling nut, and the front face is of a contour designed to seat against a mating contour on a fitting. When assembled the joint seals at the seat in a manner similar to a seat type union.
Alternate Parts: 546683, 546683, 4730-00-070-1593, 00-070-1593, 4730000701593, 000701593
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | JUL 13, 1967 | 00-070-1593 | 18024 ( FERRULE, BRAZING, TUBE FITTING ) |

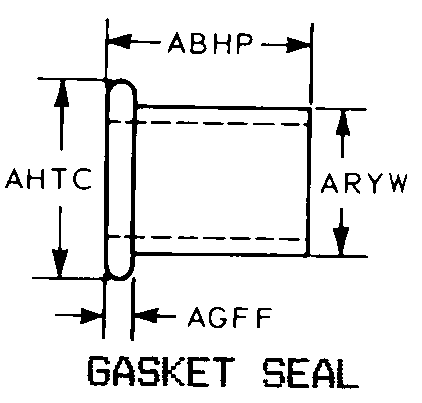

REFERENCE DRAWINGS & PICTURES
GASKET SEAL
Cross Reference | NSN 4730-00-070-1593
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 546683 | 11449 | TURBO POWER & MARINE SYSTEM INCSUB OF UNITED TECHNOLOGIES CORP |
| 546683 | 77445 | UNITED TECHNOLOGIES CORPORATIONDBA PRATT WHITNEY-SPARE PARTS |
Technical Data | NSN 4730-00-070-1593
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING |
| CASEHARDENING INDICATOR | NOT CASEHARDENED |
| HOSE/TUBE OUTSIDE DIAMETER FOR WHICH DESIGNED | 0.250 INCHES NOMINAL |
| STYLE DESIGNATOR | GASKET SEAL |
| OVERALL LENGTH | 0.250 INCHES NOMINAL |
| FLANGE OUTSIDE DIAMETER | 0.484 INCHES NOMINAL |
| SLEEVE OUTSIDE DIAMETER | 0.297 INCHES NOMINAL |
