NSN 4730-00-071-5166
Part Details | TUBE FITTING BRAZING FERRULE
4730-00-071-5166 A flanged cylindrical metallic item designed to be slipped over tubing and brazed in place. The rear face of the flange forms a bearing surface for the coupling nut, and the front face is of a contour designed to seat against a mating contour on a fitting. When assembled the joint seals at the seat in a manner similar to a seat type union.
Alternate Parts: 546692, 546692, 546692, 4730-00-071-5166, 00-071-5166, 4730000715166, 000715166
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | JUL 18, 1967 | 00-071-5166 | 18024 ( FERRULE, BRAZING, TUBE FITTING ) |
REFERENCE DRAWINGS & PICTURES

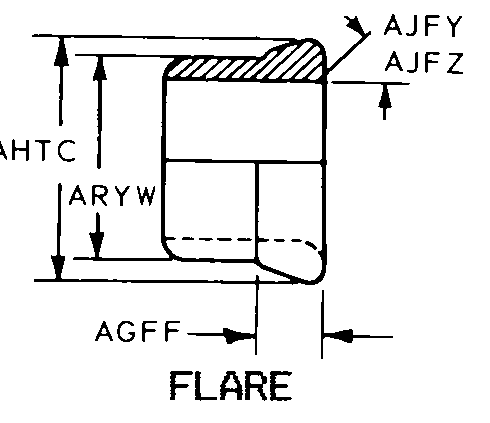

FLARE
Cross Reference | NSN 4730-00-071-5166
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 546692 | 11449 | TURBO POWER & MARINE SYSTEM INCSUB OF UNITED TECHNOLOGIES CORP |
| 546692 | 52661 | UNITED TECHNOLOGIES CORPORATIONDBA PRATT & WHITNEY |
| 546692 | 77445 | UNITED TECHNOLOGIES CORPORATIONDBA PRATT WHITNEY-SPARE PARTS |
Technical Data | NSN 4730-00-071-5166
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING |
| CASEHARDENING INDICATOR | NOT CASEHARDENED |
| HOSE/TUBE OUTSIDE DIAMETER FOR WHICH DESIGNED | 1.250 INCHES NOMINAL |
| STYLE DESIGNATOR | FLARE |
| FLANGE WIDTH | 0.188 INCHES NOMINAL |
| FLANGE OUTSIDE DIAMETER | 1.310 INCHES NOMINAL |
| SEAT ANGLE IN DEG | 45.0 |
| SLEEVE OUTSIDE DIAMETER | 0.999 INCHES NOMINAL |
