NSN 4730-00-073-1637
Part Details | FLUID PRESSURE LINE MULTIPLE CONNECTOR
4730-00-073-1637 A device of varying shapes with two or more connections to accommodate hydraulic or air passage(s) line end connections and/or a BOLT, FLUID PASSAGE(S).
Alternate Parts: NAS1240J4, NAS1240CF4, 4730-00-073-1637, 00-073-1637, 4730000731637, 000731637
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | AUG 02, 1967 | 00-073-1637 | 18682 ( CONNECTOR, MULTIPLE, FLUID PRESSURE LINE ) |

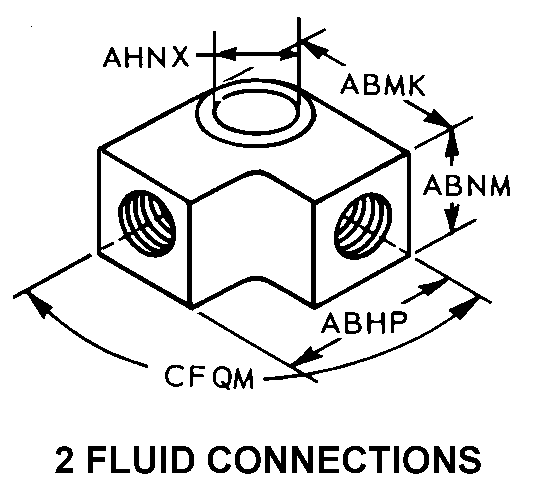

REFERENCE DRAWINGS & PICTURES
FLARELESS
2 FLUID CONNECTIONS
Cross Reference | NSN 4730-00-073-1637
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS1240J4 | 80205 | NATIONAL AEROSPACE STANDARDSCOMMITTEE AEROSPACE INDUSTRIES |
| NAS1240CF4 | 80205 | NATIONAL AEROSPACE STANDARDSCOMMITTEE AEROSPACE INDUSTRIES |
Technical Data | NSN 4730-00-073-1637
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING |
| SURFACE TREATMENT | PASSIVATE |
| STYLE DESIGNATOR | 2 2 FLUID CONNECTIONS |
| OVERALL LENGTH | 2.056 INCHES NOMINAL |
| OVERALL WIDTH | 0.812 INCHES NOMINAL |
| THICKNESS | 0.781 INCHES NOMINAL |
| BOLT HOLE DIAMETER | 0.438 INCHES NOMINAL |
| FLUID CONNECTION QUANTITY | 2 |
| CONNECTION STYLE | FLARELESS |
| FLUID CONVEYANCE TYPE AND SIZE FOR WHICH DESIGNED | U/W 1/4 OD TUBE |
| THREAD PROVISION | THREADED |
| THREAD SIZE | 7/16 IN.-20 |
| SCREW THREAD SERIES DESIGNATOR | UNF |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| SEAT | INCLUDED |
| SEAT ANGLE IN DEG | 12.0 |
| BOLT HOLE FLATS SERRATIONS | NOT PROVIDED |
| BOLT HOLE FLUID PASSAGE | PROVIDED |
