NSN 4730-00-075-0033
Part Details | TUBE-HOSE FITTING COMPRESSION SLEEVE
4730-00-075-0033 A ring-shaped item whose outer surface is so shaped as to form a seat for the coupling nut and the fitting between which it is assembled. It is designed to be slipped over tubing or hose so that tightening of the coupling nut to the fitting compresses the sleeve against the circumference of the tubing or hose thereby effecting a tight seal between the tubing, or hose fitting and coupling nut.
Alternate Parts: FN0473, FN04-73, 99954362, 9995436-2, 4730-00-075-0033, 00-075-0033, 4730000750033, 000750033
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | JAN 01, 1963 | 00-075-0033 | 18026 ( SLEEVE, COMPRESSION, TUBE-HOSE FITTING ) |
REFERENCE DRAWINGS & PICTURES

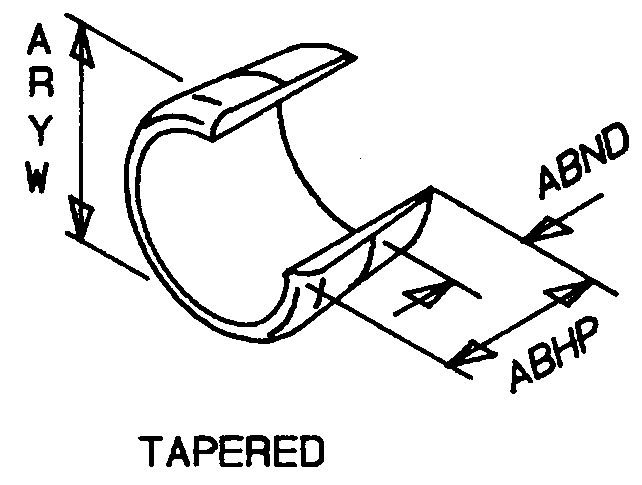

TAPERED
Cross Reference | NSN 4730-00-075-0033
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| FN04-73 | 30327 | IMPERIAL |
| 9995436-2 | 18876 | U S ARMY AVIATION AND MISSILECOMMAND |
Technical Data | NSN 4730-00-075-0033
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY |
| CASEHARDENING INDICATOR | NOT CASEHARDENED |
| HOSE/TUBE OUTSIDE DIAMETER FOR WHICH DESIGNED | 0.250 INCHES NOMINAL |
| STYLE DESIGNATOR | TAPERED |
| OVERALL LENGTH | 0.222 INCHES NOMINAL |
| TAPER LENGTH | 0.112 INCHES NOMINAL |
| SLEEVE OUTSIDE DIAMETER | 0.540 INCHES NOMINAL |
