NSN 4730-00-079-0498
Part Details | TUBE SWING JOINT
4730-00-079-0498 A metallic connector designed to join two lengths of tube and/or tube fittings in a fluid line to permit swinging or turning at one or more joints. Each joint permits turning on its axis on one plane. It may incorporate bearing(s) to facilitate swinging action after installation.
Alternate Parts: 141615102, 141615-102, 141615102, 141615-102, 141615102, 141615-102, 141615, 2301155, 230-1155, S616520492102, S6165-20492-102, 141615102, 141615-102, 4730-00-079-0498, 00-079-0498, 4730000790498, 000790498
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | DEC 08, 1967 | 00-079-0498 | 04197 ( SWING JOINT, TUBE ) |
REFERENCE DRAWINGS & PICTURES

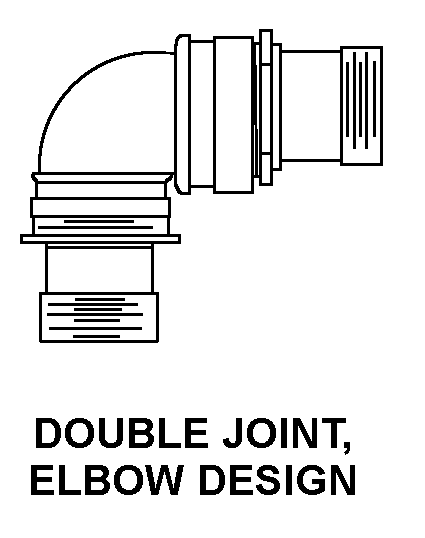

DOUBLE JOINT
Cross Reference | NSN 4730-00-079-0498
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 141615-102 | 14798 | DESIGNED METAL CONNECTIONS, INC.DBA PERMASWAGE USA |
| 141615-102 | 17446 | HUCK INTERNATIONAL, INC.DBA ARCONIC FASTENING SYSTEMS AND |
| 141615-102 | 97928 | HUCK INTL INC |
| 141615 | 97928 | HUCK INTL INC |
| 230-1155 | 98769 | SENIOR OPERATIONS LLCDBA SENIOR AEROSPACE SSP |
| S6165-20492-102 | 78286 | SIKORSKY AIRCRAFT CORPORATIONDBA SIKORSKY |
| 141615-102 | 1V757 | WESCO AIRCRAFT HARDWARE CORP.DBA WESCO AIRCRAFT |
Technical Data | NSN 4730-00-079-0498
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | DOUBLE JOINT |
| BEARING TYPE | ANNULAR BALL, NONREMOVABLE |
| FURNISHED ITEMS AND QUANTITY | 12 BALL END AND 2 PREFORMED PACKING AND 1 BALL BEARING AND 1 BACKUP WASHER |
