NSN 4730-00-079-5444
Part Details | FLUID PASSAGE BOLT
4730-00-079-5444 A boltlike item having a concentric hole along the longitudinal centerline which may extend a part or the full length of the item. It has a hole(s) perpendicular to the axis, joining or passing through the concentric hole along the longitudinal centerline. The item is designed to distribute fluid, air, or lubricant through its body to a mating item, such as a CONNECTOR, MULTIPLE, FLUID PRESSURE LINE, bearing(s), bushing(s), or the like. The item must be capable of attaching to a block fitting and/or a tubing line or be designed to accommodate a FITTING, LUBRICATION. Excludes BOLT, INTERNALLY RELIEVED BODY; BLEEDER VALVE, HYDRAULIC SYSTEM; and BUSHING, MACHINE THREAD. See also PIN, VEHICULAR LEAF SPRING SHACKLE.
Alternate Parts: 98HM27131, 98HM2713-1, 4730-00-079-5444, 00-079-5444, 4730000795444, 000795444
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | JAN 01, 1963 | 00-079-5444 | 18683 ( BOLT, FLUID PASSAGE ) |
REFERENCE DRAWINGS & PICTURES
RELIEVED

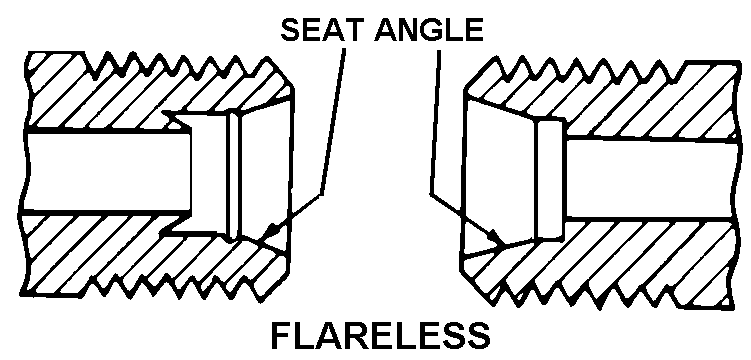

FLARELESS
FLARELESS
HEXAGON
Cross Reference | NSN 4730-00-079-5444
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 98HM2713-1 | 26512 | NORTHROP GRUMMAN SYSTEMS CORPORATIONDIV MISSION SYSTEMS |
Technical Data | NSN 4730-00-079-5444
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING |
| SURFACE TREATMENT | PASSIVATE |
| BODY STYLE | 7 RELIEVED |
| CONCENTRIC HOLE DEPTH | 0.687 INCHES MINIMUM AND 0.750 INCHES MAXIMUM |
| CONCENTRIC HOLE DIAMETER | 0.169 INCHES MINIMUM AND 0.176 INCHES MAXIMUM |
| OVERALL LENGTH | 1.031 INCHES NOMINAL |
| FIRST DIAMETER FROM WRENCHING FEATURE | 0.430 INCHES MINIMUM AND 0.438 INCHES MAXIMUM |
| LENGTH FROM BEARING SURFACE OF WRENCHING FEATURE TO END OF FIRST DIAMETER | 0.432 INCHES MINIMUM AND 0.442 INCHES MAXIMUM |
| FIRST RADIAL FLUID HOLE DIAMETER | 0.169 INCHES MINIMUM AND 0.176 INCHES MAXIMUM |
| DISTANCE FROM FIRST RADIAL HOLE CENTER TO END OF BOLT | 0.593 INCHES NOMINAL |
| LENGTH FROM BEARING SURFACE OF WRENCHING FEATURE TO BOLT END | 0.843 INCHES NOMINAL |
| WRENCHING FEATURE HEIGHT | 0.188 INCHES NOMINAL |
| FIRST END CONNECTION TYPE | THREADED EXTERNAL TUBE |
| FIRST END STYLE DESIGNATOR | FLARELESS |
| FIRST END SEAT ANGLE | 45.0 DEGREES NOMINAL |
| FIRST END THREAD SERIES DESIGNATOR | UNF |
| FIRST END NOMINAL THREAD SIZE | 0.438 INCHES |
| FIRST END THREAD CLASS | 3A |
| FIRST END THREAD DIRECTION | RIGHT-HAND |
| FIRST END THREAD LENGTH | 0.325 INCHES NOMINAL |
| WRENCHING FEATURE STYLE | HEXAGON |
| WIDTH ACROSS FLATS | 0.687 INCHES NOMINAL |
