NSN 4730-00-080-1435
Part Details | TUBE CAP
4730-00-080-1435 A tube fitting primarily designed for permanent installation during tubing system operation to fit over or butt against a tube or fitting for sealing. See also CAP, PROTECTIVE, DUST AND MOISTURE SEAL and CAP-PLUG, PROTECTIVE, DUST AND MOISTURE SEAL.
Alternate Parts: 325024215, 32-50242-15, 325024215, 32-50242-15, 4730-00-080-1435, 00-080-1435, 4730000801435, 000801435
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | DEC 13, 1967 | 00-080-1435 | 06074 ( CAP, TUBE ) |

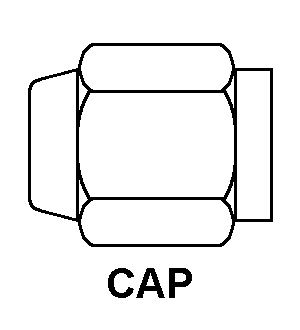

REFERENCE DRAWINGS & PICTURES
PRESSURE SEAL FLARED
CAP
Cross Reference | NSN 4730-00-080-1435
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 32-50242-15 | 76301 | BOEING COMPANY, THEDBA BOEING |
| 32-50242-15 | 0P657 | CAMNETICS MANUFACTURING CORPORATION |
Technical Data | NSN 4730-00-080-1435
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | CAP |
| CONNECTION STYLE | PRESSURE SEAL FLARED |
| SEAT ANGLE | 37.0 DEGREES |
| TUBE OUTSIDE DIAMETER FOR WHICH DESIGNED | 0.500 INCHES NOMINAL |
