NSN 4730-00-080-2519
Part Details | PIPE CAP
4730-00-080-2519 A pipe fitting primarily designed for permanent installation during piping system operation to fit over or butt against a pipe or pipe fitting for sealing. Excludes FLANGE, PIPE, BLIND.
Alternate Parts: 0081120007, 0081120-007, 8601, 847007, 847-007, 847007, 847-007, 847007, 847-007, 13357, 01031008, 847007, 847-007, 01031008, 825834, 8258-3-4, 4730-00-080-2519, 00-080-2519, 4730000802519, 000802519
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | NOV 24, 1972 | 00-080-2519 | 06073 ( CAP, PIPE ) |
REFERENCE DRAWINGS & PICTURES

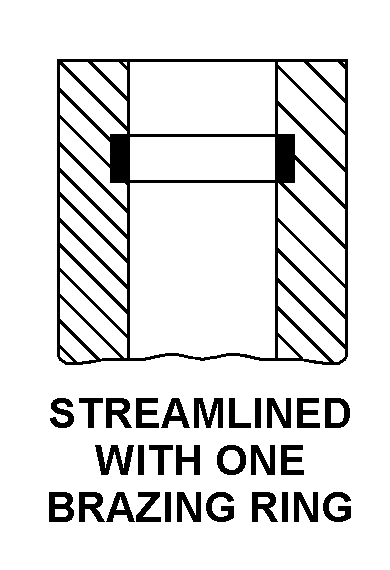

STREAMLINED WITH ONE BRAZING RING

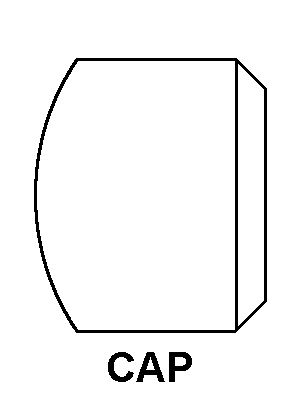

CAP
Cross Reference | NSN 4730-00-080-2519
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 0081120-007 | 54119 | CLEVELAND SERVICE CENTER |
| 8601 | 27286 | ESLON THERMOPLASTICS INC |
| 847-007 | 14889 | GEORGE FISCHER SLOANE INC. |
| 847-007 | 96405 | LASCO INDUSTRIES |
| 847-007 | 14007 | NIBCO INC |
| 13357 | 14007 | NIBCO INC |
| 01031008 | 14007 | NIBCO INC |
| 847-007 | 61623 | NIBCO INCCHEMTROL DIV |
| 01031008 | 61623 | NIBCO INCCHEMTROL DIV |
| 8258-3-4 | 27782 | PLASTILINE INC |
Technical Data | NSN 4730-00-080-2519
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | CAP |
| CONNECTION STYLE | STREAMLINED WITH ONE BRAZING RING |
| NOMINAL PIPE SIZE FOR WHICH DESIGNED | 0.750 INCHES |
| SPECIAL FEATURES | SCHEDULE 80 PIPE |
