NSN 4730-00-080-9085
Part Details | FLEXIBLE TUBE COUPLING ASSEMBLY
4730-00-080-9085 A multipiece gasket sealed item specifically designed for joining plain end ferruled tubing or beaded end tubing that will accommodate angular misalignment, axial motion and permits expansion and contraction of the tubing. It may be disconnected for seal replacement without disturbing the rest of the line. The seals are not normally furnished with the item. For rigid type items see COUPLING, TUBE; and UNION, TUBE.
Alternate Parts: T14400Z, T14-400Z, C20040AD, GS530AB400, C20040AD, 4730-00-080-9085, 00-080-9085, 4730000809085, 000809085
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | NOV 17, 1972 | 00-080-9085 | 32834 ( COUPLING ASSEMBLY, TUBE, FLEXIBLE ) |
REFERENCE DRAWINGS & PICTURES

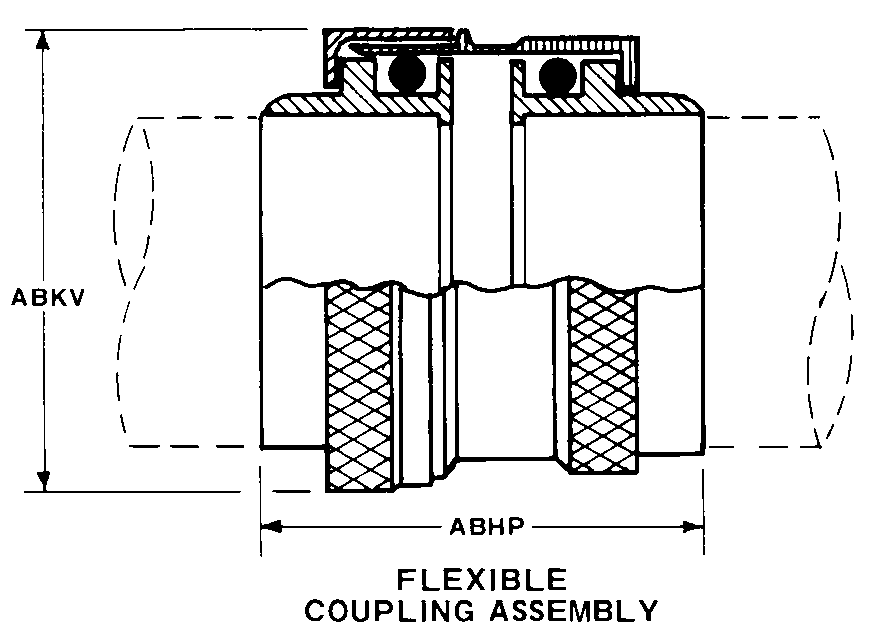

FLEXIBLE COUPLING ASSEMBLY
Cross Reference | NSN 4730-00-080-9085
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| T14-400Z | 08118 | EATON AVIATION CORPORATION |
| C20040AD | 08118 | EATON AVIATION CORPORATION |
| GS530AB400 | 26512 | NORTHROP GRUMMAN SYSTEMS CORPORATIONDIV MISSION SYSTEMS |
| C20040AD | 83046 | STANLEY AVIATION CORP |
Technical Data | NSN 4730-00-080-9085
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 2024 |
| SURFACE TREATMENT | ANODIZE AND GOLD |
| STYLE DESIGNATOR | FLEXIBLE COUPLING ASSEMBLY |
| OVERALL LENGTH | 2.828 INCHES NOMINAL |
| OUTSIDE DIAMETER | 4.850 INCHES NOMINAL |
| TUBE OUTSIDE DIAMETER FOR WHICH DESIGNED | 4.000 INCHES NOMINAL |
| END ITEM IDENTIFICATION | F-14 AIRCRAFT |
