NSN 4730-00-081-0243
Part Details | TUBE FITTING BRAZING FERRULE
4730-00-081-0243 A flanged cylindrical metallic item designed to be slipped over tubing and brazed in place. The rear face of the flange forms a bearing surface for the coupling nut, and the front face is of a contour designed to seat against a mating contour on a fitting. When assembled the joint seals at the seat in a manner similar to a seat type union.
Alternate Parts: 601, 4730-00-081-0243, 00-081-0243, 4730000810243, 000810243
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | JAN 01, 1963 | 00-081-0243 | 18024 ( FERRULE, BRAZING, TUBE FITTING ) |

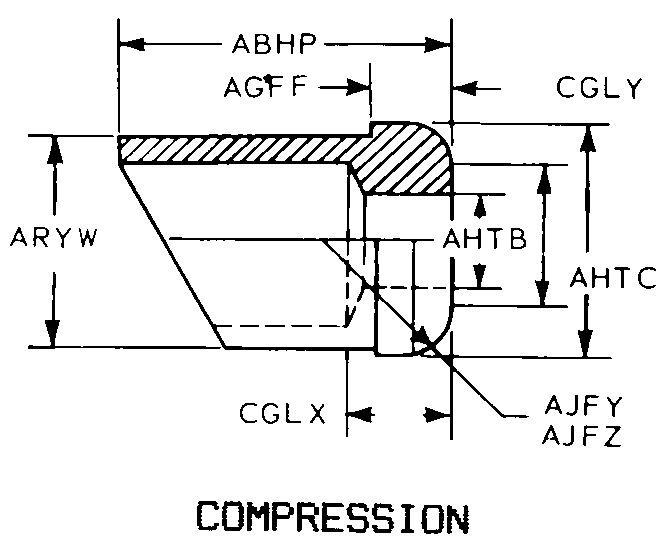

REFERENCE DRAWINGS & PICTURES
COMPRESSION
Cross Reference | NSN 4730-00-081-0243
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 601 | 09260 | L C MILLER COMPANY |
Technical Data | NSN 4730-00-081-0243
| Characteristic | Specifications |
|---|---|
| MATERIAL | MAGNESIUM ALLOY |
| STYLE DESIGNATOR | COMPRESSION |
| SUPPLEMENTARY FEATURES | SEALS WHEN COATING ON FERRULE BONDS WITH COATING ON MAGNESIUM TUBES DURING SOLDERING OPERATION |
