NSN 4730-00-081-4524
Part Details | TUBE FITTING CLINCH SLEEVE
4730-00-081-4524 A flanged cylindrical item having a sharp cutting surface on the inside diameter at the end opposite the flange. The cutting edge, in use, is designed to imbed in the tubing due to pressure exerted when the outside diameter of the sleeve is forced into and against an angular seat. This firmly attaches the sleeve to the tubing and the flanged end then serves as a bearing surface for the coupling nut to bring the tubing into the mating fitting.
Alternate Parts: LS35168VN12, LS35168VN12, 4730-00-081-4524, 00-081-4524, 4730000814524, 000814524
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | NOV 17, 1972 | 00-081-4524 | 18025 ( SLEEVE, CLINCH, TUBE FITTING ) |
REFERENCE DRAWINGS & PICTURES

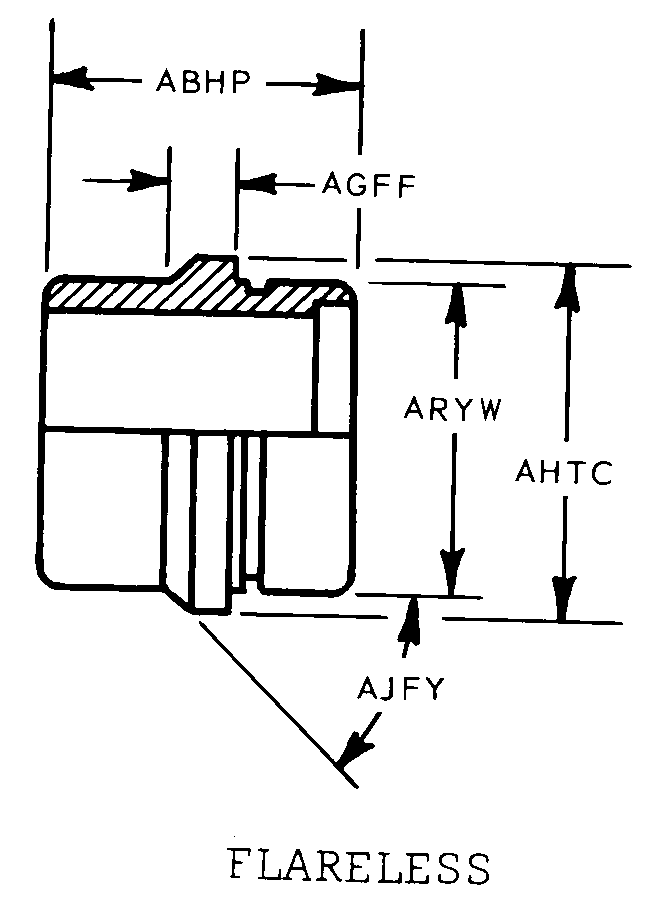

FLARELESS
Cross Reference | NSN 4730-00-081-4524
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| LS35168VN12 | 08199 | EATON AEROSPACE |
| LS35168VN12 | 98897 | LOCKHEED MARTIN CORPORATIONDBA LOCKHEED MARTIN AERONAUTICS |
Technical Data | NSN 4730-00-081-4524
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP XM-12 |
| SURFACE TREATMENT | CADMIUM |
| CASEHARDENING INDICATOR | NOT CASEHARDENED |
| HOSE/TUBE OUTSIDE DIAMETER FOR WHICH DESIGNED | 0.750 INCHES NOMINAL |
| STYLE DESIGNATOR | FLARELESS |
| OVERALL LENGTH | 0.749 INCHES NOMINAL |
| FLANGE WIDTH | 0.147 INCHES NOMINAL |
| FLANGE OUTSIDE DIAMETER | 0.960 INCHES NOMINAL |
| SEAT ANGLE IN DEG | 55.0 |
| SLEEVE OUTSIDE DIAMETER | 0.810 INCHES NOMINAL |
