NSN 4730-00-082-5923
Part Details | PIPELINE FLEXIBLE SPACER
4730-00-082-5923 An item made from rubber in various shapes, flanged on each end, and having a centrally located hole of the same size as the piping with which used. It is designed to be inserted between sections of pipe or pipe and casing of fans, pumps, or the like, to absorb shock, dampen vibration and to facilitate removal of section(s) for repair or other purposes.
Alternate Parts: 7564355X13PC16, 75643-55X13PC16, 7564321X4PCF9, 75643-21X4PCF9, SSBN6165012005404PC16, SSBN616-501-2005404PC16, SSBN6165012005404PC16, SSBN616-501-2005404PC16, 4730-00-082-5923, 00-082-5923, 4730000825923, 000825923
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | JAN 01, 1963 | 00-082-5923 | 17666 ( SPACER, FLEXIBLE, PIPELINE ) |

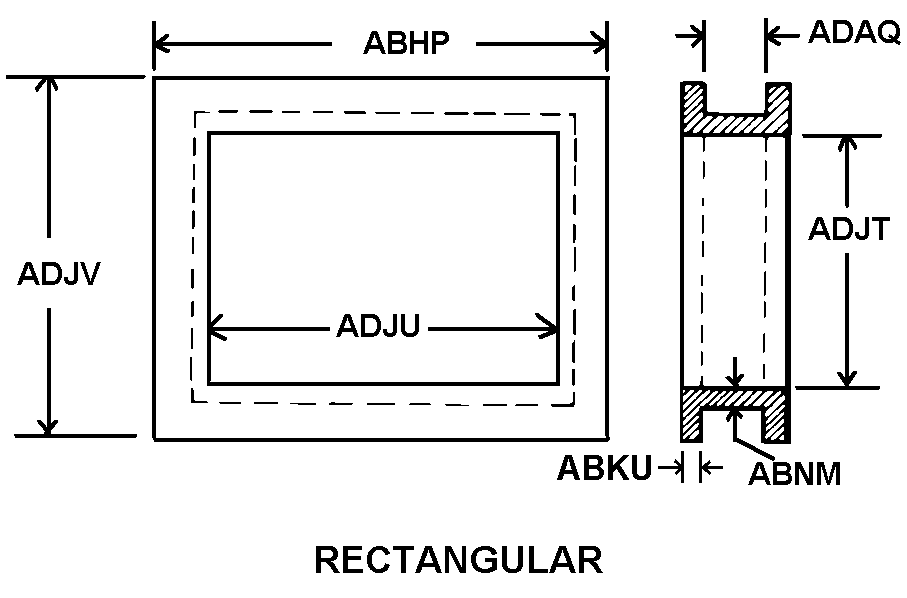

REFERENCE DRAWINGS & PICTURES
RECTANGULAR
Cross Reference | NSN 4730-00-082-5923
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 75643-55X13PC16 | 96169 | ELECTRIC BOAT CORPORATION |
| 75643-21X4PCF9 | 96169 | ELECTRIC BOAT CORPORATION |
| SSBN616-501-2005404PC16 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| SSBN616-501-2005404PC16 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
Technical Data | NSN 4730-00-082-5923
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER CHLOROPRENE CLASS CR |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-R-6855, CLASS 2, GRADE 60 MIL SPEC SINGLE MATERIAL RESPONSE |
| FABRICATION METHOD | MOLDED |
| STYLE DESIGNATOR | RECTANGULAR |
| OVERALL LENGTH | 60.500 INCHES NOMINAL |
| FLANGE THICKNESS | 0.188 INCHES NOMINAL |
| THICKNESS | 0.188 INCHES NOMINAL |
| BODY LENGTH | 2.125 INCHES NOMINAL |
| INSIDE WIDTH | 9.000 INCHES NOMINAL |
| INSIDE LENGTH | 58.000 INCHES NOMINAL |
| OUTSIDE WIDTH | 11.500 INCHES NOMINAL |
