NSN 4730-00-089-9577
Part Details | FLUID PRESSURE LINE MULTIPLE CONNECTOR
4730-00-089-9577 A device of varying shapes with two or more connections to accommodate hydraulic or air passage(s) line end connections and/or a BOLT, FLUID PASSAGE(S).
Alternate Parts: 141103, 141103, 4730-00-089-9577, 00-089-9577, 4730000899577, 000899577
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | AUG 09, 1967 | 00-089-9577 | 18682 ( CONNECTOR, MULTIPLE, FLUID PRESSURE LINE ) |

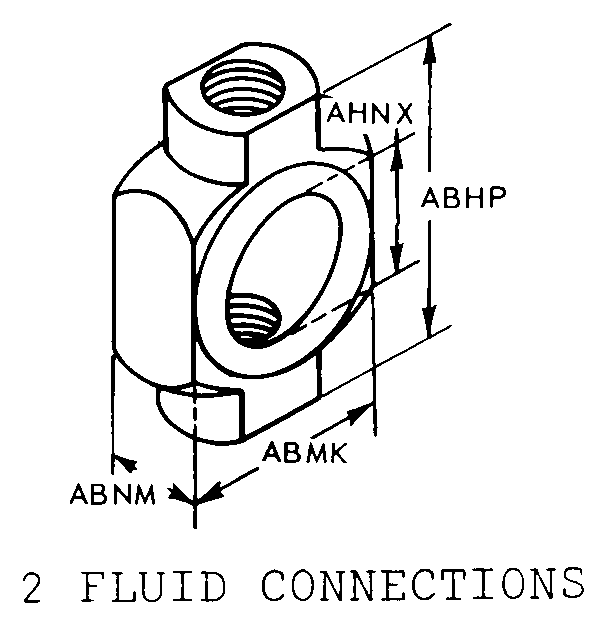

REFERENCE DRAWINGS & PICTURES
2 FLUID CONNECTIONS
Cross Reference | NSN 4730-00-089-9577
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 141103 | 17446 | HUCK INTERNATIONAL, INC.DBA ARCONIC FASTENING SYSTEMS AND |
| 141103 | 97928 | HUCK INTL INC |
Technical Data | NSN 4730-00-089-9577
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 7075 |
| SURFACE TREATMENT | ANODIZE |
| STYLE DESIGNATOR | 1 2 FLUID CONNECTIONS |
| OVERALL LENGTH | 0.838 INCHES NOMINAL |
| OVERALL WIDTH | 1.378 INCHES NOMINAL |
| THICKNESS | 0.875 INCHES NOMINAL |
| FLUID CONVEYANCE TYPE AND SIZE FOR WHICH DESIGNED | 0.614 IN. NOM PIPE SIZE; 0.250 IN. OD TUBE |
| BOLT HOLE FLATS SERRATIONS | NOT PROVIDED |
| BOLT HOLE FLUID PASSAGE | NOT PROVIDED |
| END ITEM IDENTIFICATION | A-7 AIRCRAFT |
