NSN 4730-00-095-3588
Part Details | FLUID PASSAGE BOLT
4730-00-095-3588 A boltlike item having a concentric hole along the longitudinal centerline which may extend a part or the full length of the item. It has a hole(s) perpendicular to the axis, joining or passing through the concentric hole along the longitudinal centerline. The item is designed to distribute fluid, air, or lubricant through its body to a mating item, such as a CONNECTOR, MULTIPLE, FLUID PRESSURE LINE, bearing(s), bushing(s), or the like. The item must be capable of attaching to a block fitting and/or a tubing line or be designed to accommodate a FITTING, LUBRICATION. Excludes BOLT, INTERNALLY RELIEVED BODY; BLEEDER VALVE, HYDRAULIC SYSTEM; and BUSHING, MACHINE THREAD. See also PIN, VEHICULAR LEAF SPRING SHACKLE.
Alternate Parts: 23904, 4730-00-095-3588, 00-095-3588, 4730000953588, 000953588
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | JAN 01, 1963 | 00-095-3588 | 18683 ( BOLT, FLUID PASSAGE ) |
REFERENCE DRAWINGS & PICTURES

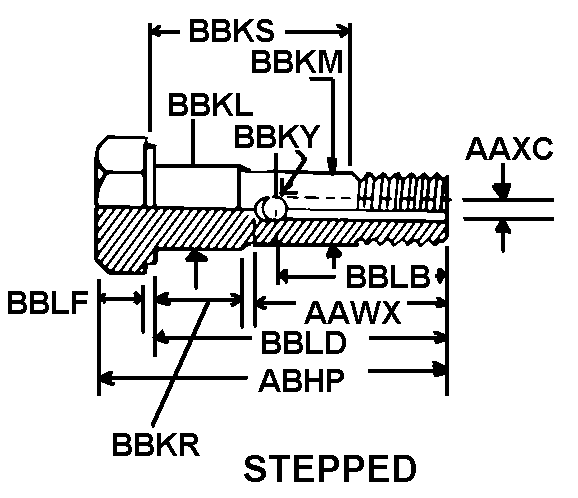

STEPPED
PLAIN
PLAIN
HEXAGON
Cross Reference | NSN 4730-00-095-3588
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 23904 | 00198 | PRATT & WHITNEY CANADA CIE DIVPRATT& WHITNEY CANADA CORP. |
Technical Data | NSN 4730-00-095-3588
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| MATERIAL DOCUMENT AND CLASSIFICATION | FSCM16359-PWA 187 MFR REF SINGLE MATERIAL RESPONSE |
| BODY STYLE | STEPPED |
| CONCENTRIC HOLE DIAMETER | 0.312 INCHES NOMINAL |
| OVERALL LENGTH | 5.578 INCHES NOMINAL |
| FIRST DIAMETER FROM WRENCHING FEATURE | 0.808 INCHES MINIMUM AND 0.810 INCHES MAXIMUM |
| SECOND DIAMETER FROM WRENCHING FEATURE | 0.656 INCHES NOMINAL |
| LENGTH FROM BEARING SURFACE OF WRENCHING FEATURE TO END OF FIRST DIAMETER | 0.593 INCHES NOMINAL |
| LENGTH FROM BEARING SURFACE OF WRENCHING FEATURE TO END OF SECOND DIAMETER | 4.546 INCHES NOMINAL |
| FIRST RADIAL FLUID HOLE DIAMETER | 0.093 INCHES NOMINAL |
| DISTANCE FROM FIRST RADIAL HOLE CENTER TO END OF BOLT | 4.984 INCHES NOMINAL |
| LENGTH FROM BEARING SURFACE OF WRENCHING FEATURE TO BOLT END | 5.296 INCHES NOMINAL |
| WRENCHING FEATURE HEIGHT | 0.281 INCHES NOMINAL |
| FIRST END CONNECTION TYPE | THREADED EXTERNAL TUBE |
| FIRST END STYLE DESIGNATOR | PLAIN |
| FIRST END THREAD SERIES DESIGNATOR | UNF |
| FIRST END NOMINAL THREAD SIZE | 0.750 INCHES |
| FIRST END THREAD CLASS | 3A |
| FIRST END THREAD DIRECTION | RIGHT-HAND |
| FIRST END THREAD LENGTH | 0.750 INCHES NOMINAL |
| WRENCHING FEATURE STYLE | HEXAGON |
| WIDTH ACROSS FLATS | 1.125 INCHES NOMINAL |
