NSN 4730-00-102-4271
Part Details | FLUID PRESSURE LINE MULTIPLE CONNECTOR
4730-00-102-4271 A device of varying shapes with two or more connections to accommodate hydraulic or air passage(s) line end connections and/or a BOLT, FLUID PASSAGE(S).
Alternate Parts: A02H30451, A02H3045-1, 4730-00-102-4271, 00-102-4271, 4730001024271, 001024271
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | MAY 29, 1968 | 00-102-4271 | 18682 ( CONNECTOR, MULTIPLE, FLUID PRESSURE LINE ) |
REFERENCE DRAWINGS & PICTURES

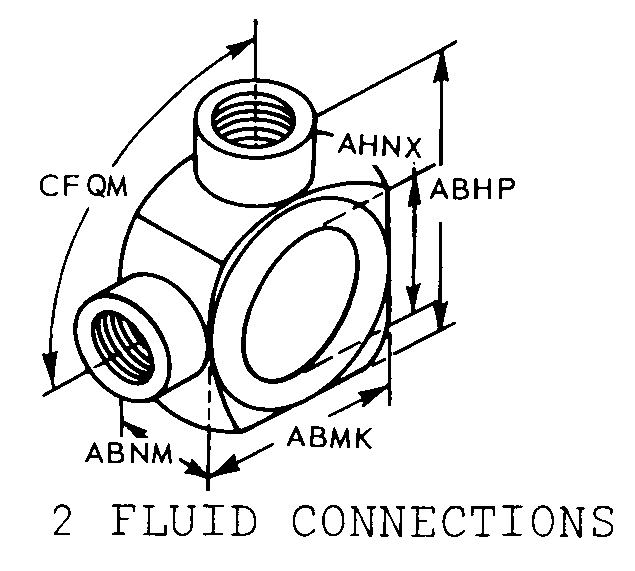

2 FLUID CONNECTIONS
Cross Reference | NSN 4730-00-102-4271
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| A02H3045-1 | 77272 | THE BOEING COMPANYDBA BOEING |
Technical Data | NSN 4730-00-102-4271
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY |
| SURFACE TREATMENT | ANODIZE |
| STYLE DESIGNATOR | 2 FLUID CONNECTIONS |
| OVERALL LENGTH | 1.688 INCHES NOMINAL |
| OVERALL WIDTH | 1.125 INCHES NOMINAL |
| THICKNESS | 1.000 INCHES NOMINAL |
| BOLT HOLE DIAMETER | 0.313 INCHES NOMINAL |
| DEG BETWEEN OUTLETS | 90.0 |
| BOLT HOLE FLATS SERRATIONS | NOT PROVIDED |
| BOLT HOLE FLUID PASSAGE | PROVIDED |
