NSN 4730-00-105-9192
Part Details | LUBRICATION FITTING
4730-00-105-9192 A specifically designed item pressed or threaded into a lubrication passage, for the purpose of adapting a related coupler and/or grease gun, to dispense grease to a bearing, shaft and similar items.
Alternate Parts: 127762, 127762, 1675B, 127762, 4730-00-105-9192, 00-105-9192, 4730001059192, 001059192
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | JUL 12, 1968 | 00-105-9192 | 03177 ( FITTING, LUBRICATION ) |

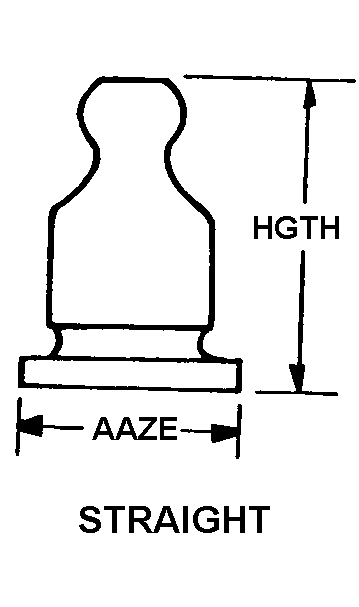

REFERENCE DRAWINGS & PICTURES
STRAIGHT
Cross Reference | NSN 4730-00-105-9192
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 127762 | 24617 | GENERAL MOTORS CORP |
| 127762 | 22852 | SPALLA INC |
| 1675B | 95879 | STEWART-WARNER ALEMITE CORP |
| 127762 | 19207 | U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM |
Technical Data | NSN 4730-00-105-9192
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | STRAIGHT |
| SHANK DIAMETER | 0.375 INCHES NOMINAL |
| HEIGHT | 0.500 INCHES NOMINAL |
| SPECIAL FEATURES | SURFACE LOCATED BALL CHECK VALVE |
