NSN 4730-00-106-1743
Part Details | GREASE CUP
4730-00-106-1743 An item to be mounted on machinery, designed to hold grease and supply it to parts of machinery.
Alternate Parts: 3504570, 3504-5-70, A33891A, A-33891-A, A33891A, A-33891-A, 0 FEMALE, 4730-00-106-1743, 00-106-1743, 4730001061743, 001061743
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | JUL 12, 1968 | 00-106-1743 | 03176 ( CUP, GREASE ) |

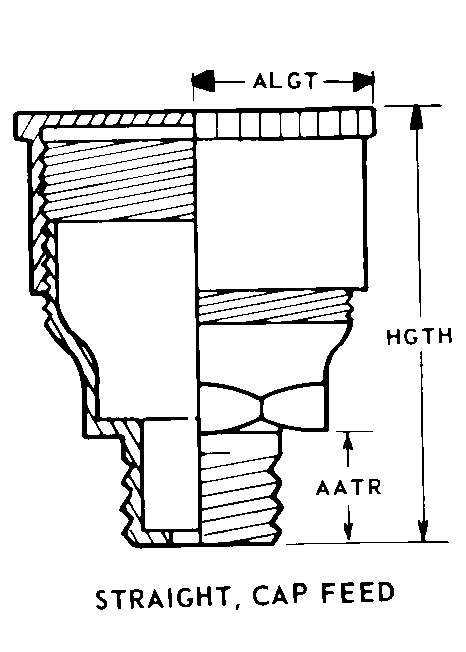

REFERENCE DRAWINGS & PICTURES
STRAIGHT, CAP FEED
Cross Reference | NSN 4730-00-106-1743
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3504-5-70 | 95402 | ELECTRIC BOAT CORPDBA ELECTRO DYNAMIC |
| A-33891-A | 95402 | ELECTRIC BOAT CORPDBA ELECTRO DYNAMIC |
| A-33891-A | 96169 | ELECTRIC BOAT CORPORATION |
| 0 FEMALE | 51802 | HANSOME ENERGY SYSTEMS, INC. |
Technical Data | NSN 4730-00-106-1743
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | STRAIGHT, CAP FEED |
| SHANK LENGTH | 0.438 INCHES NOMINAL |
| ASSEMBLY CLEARANCE RADIUS | 0.713 INCHES NOMINAL |
| HEIGHT | 2.040 INCHES NOMINAL |
| SCREW THREAD SERIES DESIGNATOR | NPT |
| NOMINAL THREAD SIZE | 0.250 INCHES |
| SPECIAL FEATURES | FURNISHED WITH 0.250 IN. PIPE COUPLING |
