NSN 4730-00-110-3573
Part Details | LUBRICATING OIL CUP
4730-00-110-3573 An item designed to be driven or threaded into a machine part for the purpose of dispensing oil to a lubricating passage or duct, and to seal the passage or duct against dirt and moisture. The item does not have a transparent body, or contain a wick or needle to restrict or filter the flow.
Alternate Parts: 106670, 106-670, 106670, 106-670, 4730-00-110-3573, 00-110-3573, 4730001103573, 001103573
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | AUG 09, 1968 | 00-110-3573 | 03179 ( CUP, OIL, LUBRICATING ) |
REFERENCE DRAWINGS & PICTURES

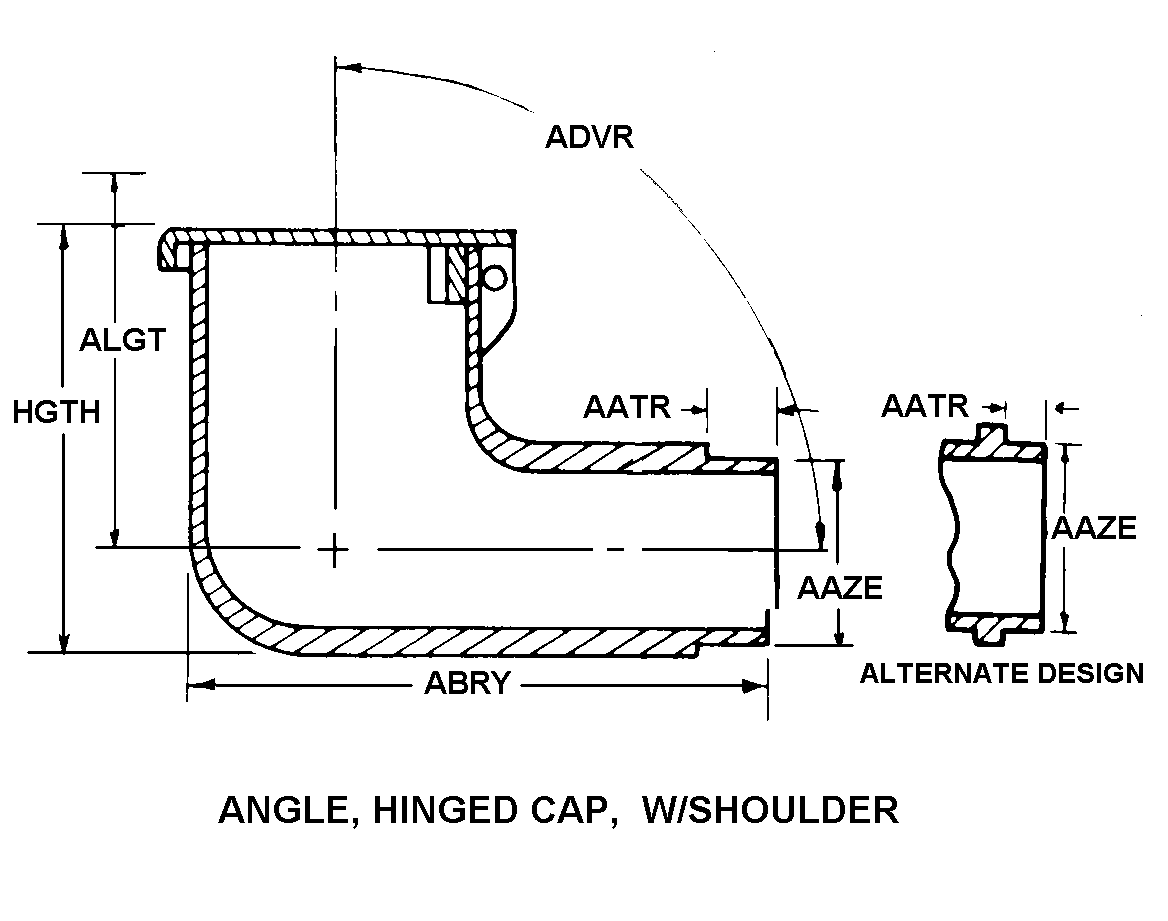

ANGLE, HINGED CAP, W/SHOULDER
Cross Reference | NSN 4730-00-110-3573
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 106-670 | 55509 | COOPER CAMERON CORPAJAX-SUPERIOR DIV |
| 106-670 | 14541 | GE OIL & GAS COMPRESSION SYSTEMS,LLC |
Technical Data | NSN 4730-00-110-3573
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | ANGLE, HINGED CAP, W/SHOULDER |
| SHANK LENGTH | 0.282 INCHES NOMINAL |
| SHANK DIAMETER | 0.250 INCHES NOMINAL |
| LENGTH | 1.000 INCHES NOMINAL |
| ANGLE IN DEG | 90.0 |
| ASSEMBLY CLEARANCE RADIUS | 0.695 INCHES NOMINAL |
| HEIGHT | 0.695 INCHES NOMINAL |
| OIL CAPACITY | 0.250 FLUID OUNCES |
