NSN 4730-00-111-2456
Part Details | TUBE NIPPLE
4730-00-111-2456 A straight, one-piece fitting used to join a tube or tube fitting to another tube or tube fitting. It may have any type externally threaded tube connections of the same size on both ends and is usually shaped externally at the center to accommodate a wrench. It may include nuts, sleeves, and/or grommets.
Alternate Parts: 50K87, 4730-00-111-2456, 00-111-2456, 4730001112456, 001112456
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | AUG 16, 1968 | 00-111-2456 | 03783 ( NIPPLE, TUBE ) |
REFERENCE DRAWINGS & PICTURES

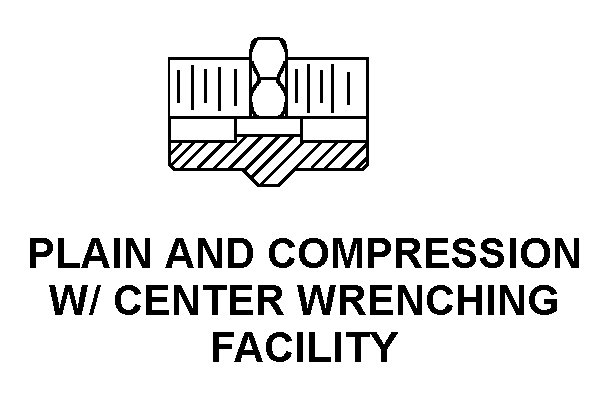

PLAIN AND COMPRESSION W/ CENTER WRENCHING FACILITY
Cross Reference | NSN 4730-00-111-2456
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 50K87 | 39428 | MCMASTER-CARR SUPPLY COMPANY |
Technical Data | NSN 4730-00-111-2456
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | PLAIN AND COMPRESSION W/ CENTER WRENCHING FACILITY |
| NOMINAL OVERALL LENGTH | 0.094 INCHES |
