NSN 4730-00-111-2497
Part Details | QUICK DISCONNECT ELBOW
4730-00-111-2497 A fluid line fitting shaped to form an angle of less than 180 degrees (3.142 radians) from straight flow. Both ends must have a quick disconnect feature. The fitting may incorporate a self-sealing feature for the purpose of automatically shutting off the flow of fluid when disconnected from a mating quick disconnect feature. For elbow type fluid line fittings with a quick disconnect feature on one end and a pipe, tube or boss connection on the other end, see COUPLING HALF, QUICK DISCONNECT.
Alternate Parts: 200F90, 200F90ALUM, 200F-90-ALUM, 1218, 4730-00-111-2497, 00-111-2497, 4730001112497, 001112497
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | AUG 16, 1968 | 00-111-2497 | 29761 ( ELBOW, QUICK DISCONNECT ) |

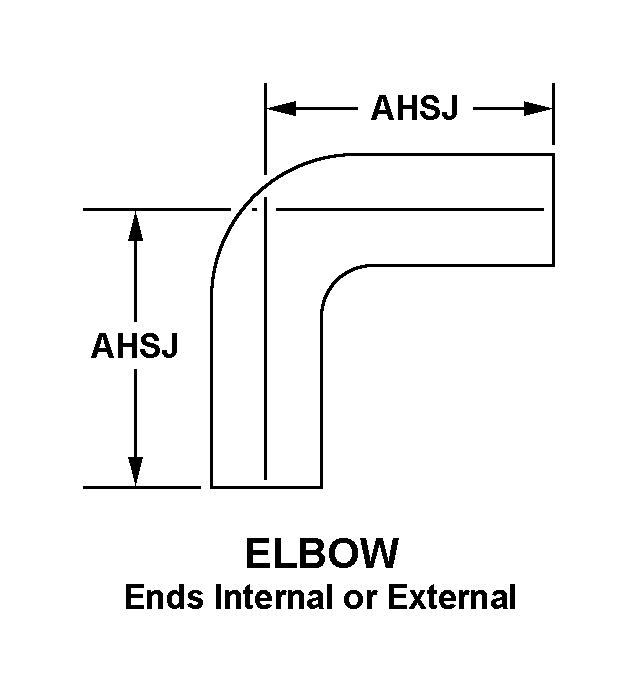

REFERENCE DRAWINGS & PICTURES
ELBOW
Cross Reference | NSN 4730-00-111-2497
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 200F90 | 24869 | DVCC INC |
| 200F-90-ALUM | 24869 | DVCC INC |
| 1218 | 24869 | DVCC INC |
Technical Data | NSN 4730-00-111-2497
| Characteristic | Specifications |
|---|---|
| FLOW ANGLE | 90.0 DEGREES |
| STYLE DESIGNATOR | ELBOW |
