NSN 4730-00-113-0799
Part Details | LUBRICATION FITTING
4730-00-113-0799 A specifically designed item pressed or threaded into a lubrication passage, for the purpose of adapting a related coupler and/or grease gun, to dispense grease to a bearing, shaft and similar items.
Alternate Parts: 10664292, 4730-00-113-0799, 00-113-0799, 4730001130799, 001130799
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | SEP 09, 1968 | 00-113-0799 | 03177 ( FITTING, LUBRICATION ) |

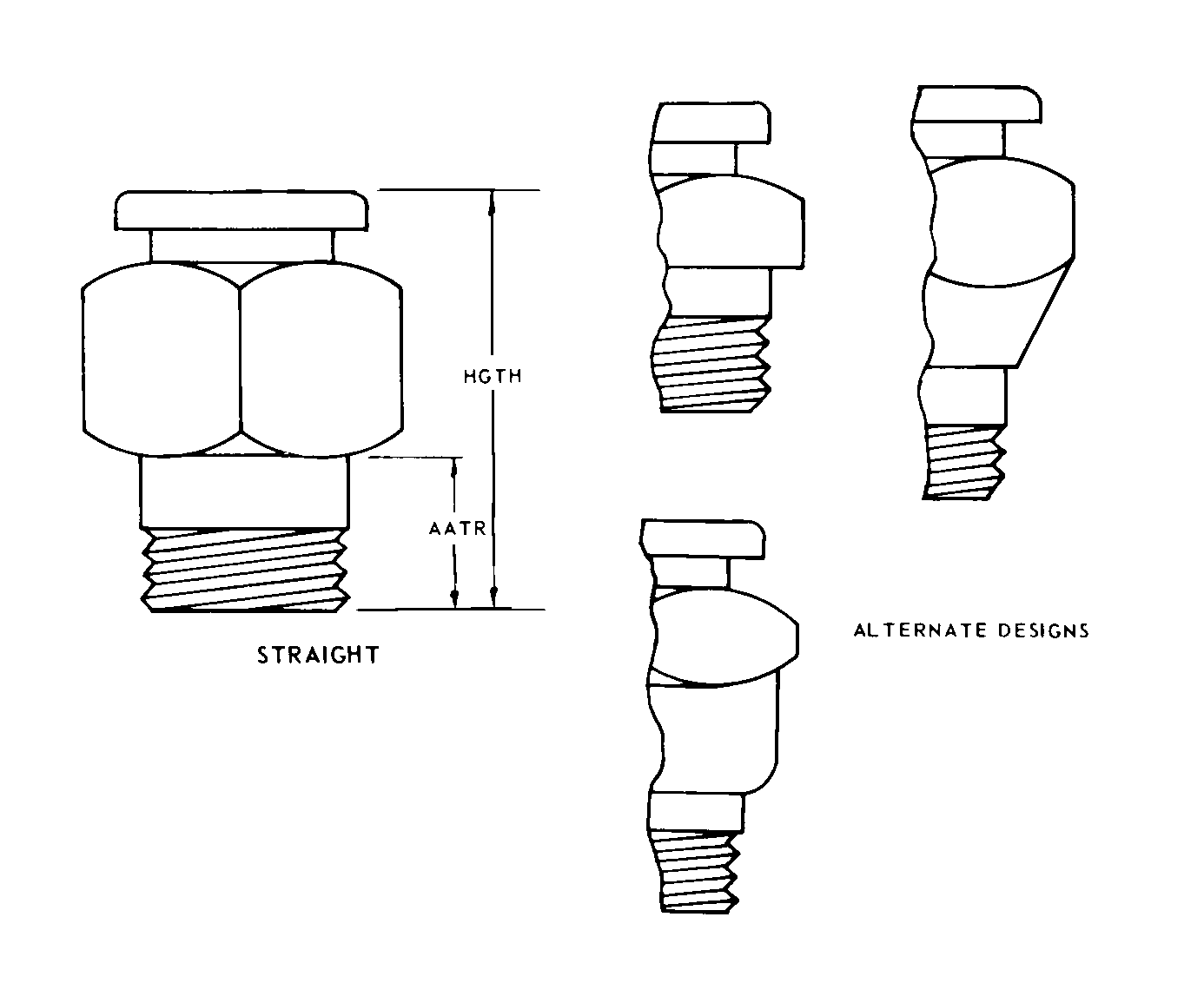

REFERENCE DRAWINGS & PICTURES
STRAIGHT
Cross Reference | NSN 4730-00-113-0799
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10664292 | 18876 | U S ARMY AVIATION AND MISSILECOMMAND |
Technical Data | NSN 4730-00-113-0799
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | STRAIGHT |
| SHANK LENGTH | 0.300 INCHES NOMINAL |
| HEIGHT | 0.800 INCHES NOMINAL |
| SCREW THREAD SERIES DESIGNATOR | NPTF |
| NOMINAL THREAD SIZE | 0.125 INCHES |
| THREAD QUANTITY PER INCH | 27 |
| WIDTH ACROSS FLATS | 0.500 INCHES NOMINAL |
