NSN 4730-00-113-8039
Part Details | MAGNETIC PIPE PLUG
4730-00-113-8039 A pipe fitting primarily designed for installation in a lubrication or hydraulic system. It has an integral magnet in the body and external pipe threads.
Alternate Parts: PLU664, PLU664, 4730-00-113-8039, 00-113-8039, 4730001138039, 001138039
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | SEP 06, 1968 | 00-113-8039 | 22340 ( PLUG, PIPE, MAGNETIC ) |
REFERENCE DRAWINGS & PICTURES
PLAIN

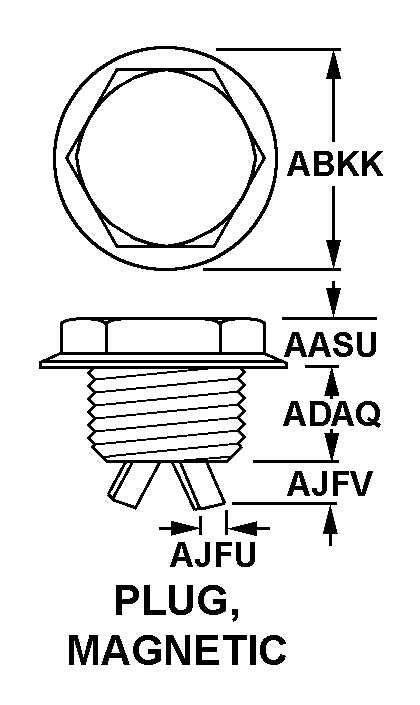

PLUG, MAGNETIC
Cross Reference | NSN 4730-00-113-8039
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| PLU664 | 0AT62 | DRESSER-RAND COMPANYDBA RECIPROCATING PRODUCTS DIV |
| PLU664 | 93236 | DRESSER-RAND COWORTHINGTON COMPRESSOR OPN |
Technical Data | NSN 4730-00-113-8039
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | PLUG, MAGNETIC |
| HEAD HEIGHT | 0.563 INCHES NOMINAL |
| FLANGE DIAMETER | 1.500 INCHES NOMINAL |
| BODY LENGTH | 0.500 INCHES NOMINAL |
| CONNECTION STYLE | PLAIN |
