NSN 4730-00-117-3378
Part Details | TUBE NIPPLE
4730-00-117-3378 A straight, one-piece fitting used to join a tube or tube fitting to another tube or tube fitting. It may have any type externally threaded tube connections of the same size on both ends and is usually shaped externally at the center to accommodate a wrench. It may include nuts, sleeves, and/or grommets.
Alternate Parts: BUWEPSDWG2220194, 2220194, BUWEPSDWG2220194, 4730-00-117-3378, 00-117-3378, 4730001173378, 001173378
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | OCT 04, 1968 | 00-117-3378 | 03783 ( NIPPLE, TUBE ) |
REFERENCE DRAWINGS & PICTURES

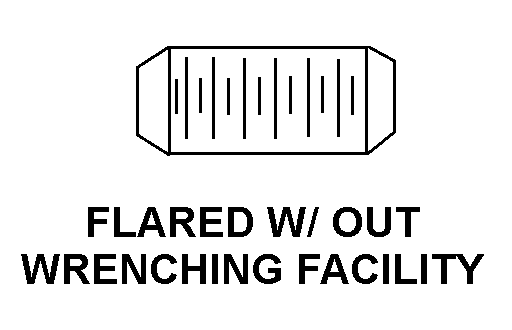

FLARED W/ OUT WRENCHING FACILITY
Cross Reference | NSN 4730-00-117-3378
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| BUWEPSDWG2220194 | 08092 | DEPARTMENT OF THE NAVYNAVAL SURFACE WARFARE CENTER |
| 2220194 | 10001 | NAVAIR AND NAVSEA MANAGEDORIGINAL DESIGN ACTIVITY DWG NOT |
| BUWEPSDWG2220194 | 08KE6 | NAVSURFWARCEN DET PICATINNY |
Technical Data | NSN 4730-00-117-3378
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | FLARED W/ OUT WRENCHING FACILITY |
| NOMINAL OVERALL LENGTH | 2.644 INCHES |
| FURNISHED ITEMS AND QUANTITY | 2 LOCKNUT |
