NSN 4730-00-118-1725
Part Details | PIPE SWING JOINT
4730-00-118-1725 A metallic connector designed to join two lengths of pipe and/or pipe fittings in a pipeline to permit swinging or turning at one or more joints. Each joint permits turning on its axis on one plane.
Alternate Parts: 1222168, 1-222168, TOO1222168, 123312, 1-23312, 123312, 1-23312, 1222168, 1-222168, 4730-00-118-1725, 00-118-1725, 4730001181725, 001181725
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | OCT 09, 1968 | 00-118-1725 | 04195 ( SWING JOINT, PIPE ) |
REFERENCE DRAWINGS & PICTURES

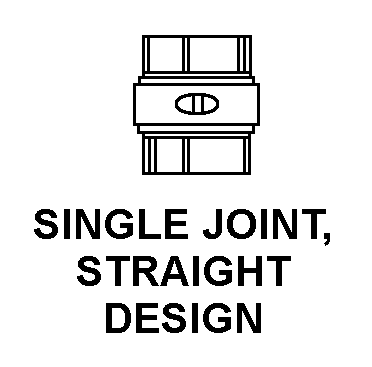

SINGLE JOINT, STRAIGHT DESIGN
Cross Reference | NSN 4730-00-118-1725
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1-222168 | 82366 | AERO-MOTIVE COMPANY |
| TOO1222168 | 82366 | AERO-MOTIVE COMPANY |
| 1-23312 | 82366 | AERO-MOTIVE COMPANY |
| 1-23312 | 60145 | AEROSTAR GLOBAL LOGISTICS INC.DBA AEROSTAR TECHNICAL SERVICES |
| 1-222168 | 60145 | AEROSTAR GLOBAL LOGISTICS INC.DBA AEROSTAR TECHNICAL SERVICES |
Technical Data | NSN 4730-00-118-1725
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | SINGLE JOINT, STRAIGHT DESIGN |
| FURNISHED ITEMS AND QUANTITY | 1 MOUNTING BRACKET |
