NSN 4730-00-123-7391
Part Details | PIPE COUPLING
4730-00-123-7391 A straight fitting 12 inches (304 mm) long or under having the same or different type pipe connection of the same size on both ends. It is designed to join a pipe or pipe fitting to another pipe or pipe fitting. Excludes fittings with threaded external connections on both ends. See also NIPPLE, PIPE.
Alternate Parts: 1189646, 1189646, 4730-00-123-7391, 00-123-7391, 4730001237391, 001237391
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | JAN 01, 1963 | 00-123-7391 | 06076 ( COUPLING, PIPE ) |
REFERENCE DRAWINGS & PICTURES

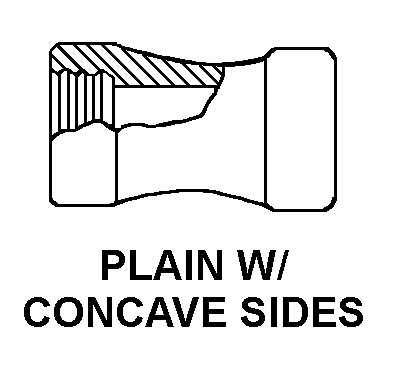

PLAIN W/CONCAVE SIDES
Cross Reference | NSN 4730-00-123-7391
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1189646 | 88277 | BOEING COMPANY, THEDBA BOEING |
| 1189646 | 18355 | BOEING COMPANY, THEDBA BOEING |
Technical Data | NSN 4730-00-123-7391
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | PLAIN W/CONCAVE SIDES |
| NOMINAL OVERALL LENGTH | 1.300 INCHES |
