NSN 4730-00-126-0181
Part Details | PIPE SWING JOINT
4730-00-126-0181 A metallic connector designed to join two lengths of pipe and/or pipe fittings in a pipeline to permit swinging or turning at one or more joints. Each joint permits turning on its axis on one plane.
Alternate Parts: 2222168, 2-222168, 2222168, 2-222168, 2222168, 2-222168, 20262222168, 2026-2-222168, 4730-00-126-0181, 00-126-0181, 4730001260181, 001260181
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | DEC 27, 1972 | 00-126-0181 | 04195 ( SWING JOINT, PIPE ) |
REFERENCE DRAWINGS & PICTURES

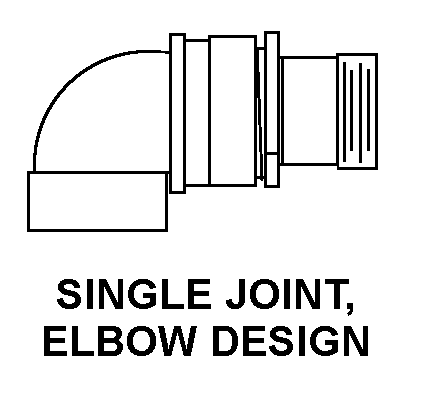

SINGLE JOINT, ELBOW DESIGN
Cross Reference | NSN 4730-00-126-0181
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2-222168 | 82366 | AERO-MOTIVE COMPANY |
| 2-222168 | 60145 | AEROSTAR GLOBAL LOGISTICS INC.DBA AEROSTAR TECHNICAL SERVICES |
| 2-222168 | 07666 | TOKHEIM CORPSMALL PUMPS DIV |
| 2026-2-222168 | 55683 | WHEELER BROS., INC. |
Technical Data | NSN 4730-00-126-0181
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | SINGLE JOINT, ELBOW DESIGN |
| BEARING TYPE | SLEEVE, NONREMOVABLE |
| SPECIAL FEATURES | ONE OILER CUP FURNISHED |
