NSN 4730-00-126-8455
Part Details | LUBRICATION FITTING
4730-00-126-8455 A specifically designed item pressed or threaded into a lubrication passage, for the purpose of adapting a related coupler and/or grease gun, to dispense grease to a bearing, shaft and similar items.
Alternate Parts: 307256, 0307256, 307256, 0307256, 307256, 0307256, 307256, 0307256, 4730-00-126-8455, 00-126-8455, 4730001268455, 001268455
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | NOV 22, 1968 | 00-126-8455 | 03177 ( FITTING, LUBRICATION ) |

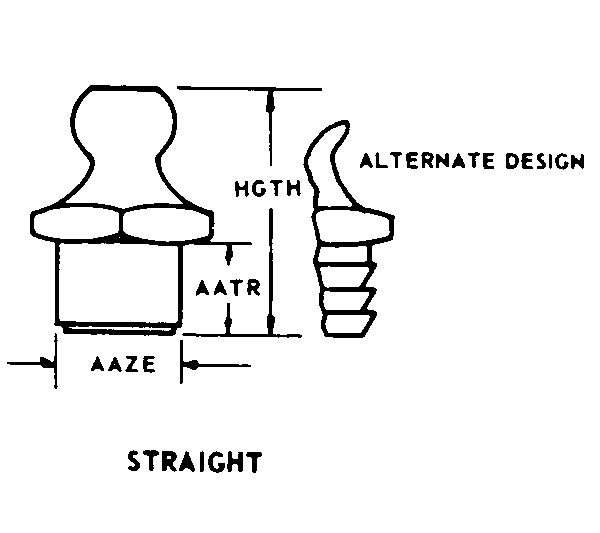

REFERENCE DRAWINGS & PICTURES
STRAIGHT
Cross Reference | NSN 4730-00-126-8455
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 307256 | 1UVT5 | BRP US INC.DBA BOMBARDIER MOTOR CORP OF AMERICA |
| 0307256 | 1UVT5 | BRP US INC.DBA BOMBARDIER MOTOR CORP OF AMERICA |
| 307256 | 21119 | EVINRUDE MOTORSPRODUCT GROUP OF OUTBOARD MARINE |
| 0307256 | 21119 | EVINRUDE MOTORSPRODUCT GROUP OF OUTBOARD MARINE |
| 307256 | 80256 | OUTBOARD MARINE CORP |
| 0307256 | 80256 | OUTBOARD MARINE CORP |
| 307256 | 32195 | OUTBOARD MARINE CORPJOHNSON MOTORS DIV |
| 0307256 | 32195 | OUTBOARD MARINE CORPJOHNSON MOTORS DIV |
Technical Data | NSN 4730-00-126-8455
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | STRAIGHT |
| SHANK LENGTH | 0.250 INCHES NOMINAL |
| SHANK DIAMETER | 0.188 INCHES NOMINAL |
| HEIGHT | 0.547 INCHES NOMINAL |
| SPECIAL FEATURES | SERRATED SHANK,AND SURFACE LOCATED BALL CHECK VALVE |
