NSN 4730-00-127-4615
Part Details | TUBE FITTING BRAZING FERRULE
4730-00-127-4615 A flanged cylindrical metallic item designed to be slipped over tubing and brazed in place. The rear face of the flange forms a bearing surface for the coupling nut, and the front face is of a contour designed to seat against a mating contour on a fitting. When assembled the joint seals at the seat in a manner similar to a seat type union.
Alternate Parts: SS8141, SS814-1, SS8141, SS814-1, 4730-00-127-4615, 00-127-4615, 4730001274615, 001274615
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | MAR 15, 1975 | 00-127-4615 | 18024 ( FERRULE, BRAZING, TUBE FITTING ) |
REFERENCE DRAWINGS & PICTURES

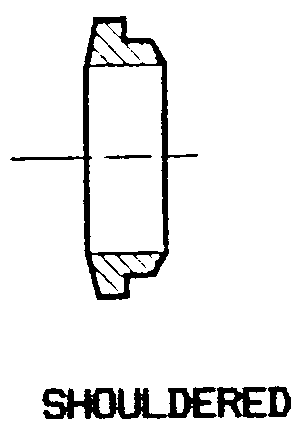

SHOULDERED
Cross Reference | NSN 4730-00-127-4615
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| SS814-1 | U7307 | SOUTH LONDON VALVE & FITTING COMPANYTD T/A SWAGELOK LONDON |
| SS814-1 | 3T9T9 | SWAGELOK COMPANY |
Technical Data | NSN 4730-00-127-4615
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING |
| CASEHARDENING INDICATOR | NOT CASEHARDENED |
| HOSE/TUBE OUTSIDE DIAMETER FOR WHICH DESIGNED | 0.500 INCHES NOMINAL |
| STYLE DESIGNATOR | SHOULDERED |
| SPECIAL FEATURES | FERRULE,BACK |
