NSN 4730-00-189-2630
Part Details | PIPE UNION
4730-00-189-2630 A straight pipe fitting designed to join two lengths of pipe or pipe fittings in such a manner that they may be disconnected without disturbing the rest of the pipe line. The end connections have pipe threads or are unthreaded and designed to accommodate a pipe.
Alternate Parts: ASME B16.39, MILU18250, 4730-00-189-2630, 00-189-2630, 4730001892630, 001892630
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | JAN 01, 1961 | 00-189-2630 | 03785 ( UNION, PIPE ) |
REFERENCE DRAWINGS & PICTURES

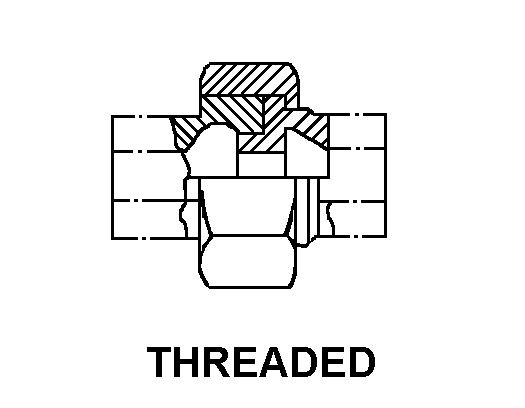

THREADED
Cross Reference | NSN 4730-00-189-2630
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| ASME B16.39 | 05047 | AMERICAN SOCIETY OF MECHANICALENGINEERS, THE |
| MILU18250 | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
Technical Data | NSN 4730-00-189-2630
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | THREADED |
| NOMINAL OVERALL LENGTH | 1.930 INCHES |
| SEAT TYPE | GROUND JOINT |
| SPECIFICATION/STANDARD DATA | 81349-MIL-U-18250 GOVERNMENT SPECIFICATION |
| NONDEFINITIVE SPEC/STD DATA | XB TYPE |
