NSN 4730-00-202-8275
Part Details | FLARED TUBE FITTING CONICAL SEAL
4730-00-202-8275 A cylindrical soft metallic crush item used to seal high pressure flared tube connections. It is designed to be inserted between the conical surface of a flared tube fitting and the inner surface of the flared end of the connecting tube.
Alternate Parts: 7M3D6, 4730-00-202-8275, 00-202-8275, 4730002028275, 002028275
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | JAN 01, 1963 | 00-202-8275 | 32837 ( SEAL, CONICAL, FLARED TUBE FITTING ) |

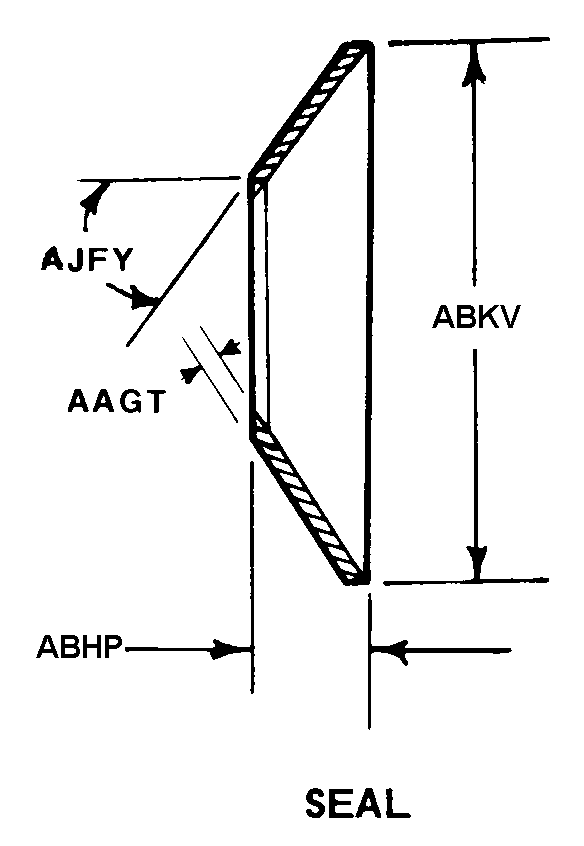

REFERENCE DRAWINGS & PICTURES
SEAL
Cross Reference | NSN 4730-00-202-8275
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 7M3D6 | 76301 | BOEING COMPANY, THEDBA BOEING |
Technical Data | NSN 4730-00-202-8275
| Characteristic | Specifications |
|---|---|
| CASEHARDENING INDICATOR | NOT CASEHARDENED |
| HOSE/TUBE OUTSIDE DIAMETER FOR WHICH DESIGNED | 0.375 INCHES NOMINAL |
| STYLE DESIGNATOR | SEAL |
| WALL THICKNESS | 0.035 INCHES NOMINAL |
| OVERALL LENGTH | 0.084 INCHES NOMINAL |
| OUTSIDE DIAMETER | 0.474 INCHES NOMINAL |
| SEAT ANGLE IN DEG | 37.0 |
