NSN 4730-00-203-0996
Part Details | TUBE FITTING BRAZING FERRULE
4730-00-203-0996 A flanged cylindrical metallic item designed to be slipped over tubing and brazed in place. The rear face of the flange forms a bearing surface for the coupling nut, and the front face is of a contour designed to seat against a mating contour on a fitting. When assembled the joint seals at the seat in a manner similar to a seat type union.
Alternate Parts: 3237192, 3237192, AVP10S410633PC73, AVP10S41-0633PC73, 4730-00-203-0996, 00-203-0996, 4730002030996, 002030996
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | JAN 01, 1961 | 00-203-0996 | 18024 ( FERRULE, BRAZING, TUBE FITTING ) |

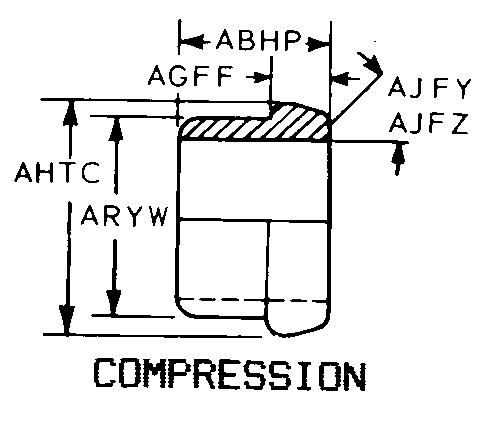

REFERENCE DRAWINGS & PICTURES
COMPRESSION
Cross Reference | NSN 4730-00-203-0996
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3237192 | 72915 | GENERAL MOTORS CORPELECTRO-MOTIVE DIV |
| 3237192 | 55380 | HATCH & KIRK, INC. |
| AVP10S41-0633PC73 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
Technical Data | NSN 4730-00-203-0996
| Characteristic | Specifications |
|---|---|
| SURFACE TREATMENT | CADMIUM |
| CASEHARDENING INDICATOR | NOT CASEHARDENED |
| HOSE/TUBE OUTSIDE DIAMETER FOR WHICH DESIGNED | 0.250 INCHES NOMINAL |
| STYLE DESIGNATOR | COMPRESSION |
| OVERALL LENGTH | 1.250 INCHES NOMINAL |
| FLANGE WIDTH | 0.250 INCHES NOMINAL |
| FLANGE OUTSIDE DIAMETER | 0.531 INCHES NOMINAL |
| SEAT ANGLE IN DEG | 30.0 |
| SLEEVE OUTSIDE DIAMETER | 0.375 INCHES NOMINAL |
