NSN 4810-00-970-1608
Part Details | FLUID PRESSURE REGULATING VALVE
4810-00-970-1608 A valve designed to automatically maintain within close limits a predetermined outlet pressure which may be adjustable within a specified range regardless of the higher fluctuating or constant inlet pressure. It is designed for use with compressed gas(es) and various liquids and may include gauges. It may be inline or cartridge (manifold) design. Excludes REGULATOR, PRESSURE, MEDICAL GAS ADMINISTRATION APPARATUS; REGULATOR, OXYGEN, BAROMETRIC CONTINUOUS FLOW; REGULATOR, OXYGEN DEMAND; REGULATOR, OXYGEN DILUTER DEMAND; and valve(1), fluid pressure regulating, aircraft.
Alternate Parts: 10838811, 108388-1-1, 32580299, 32-58029-9, 10838821, 108388-2-1, 10838811, 108388-1-1, 10838811, 108388-1-1, 4810-00-970-1608, 00-970-1608, 4810009701608, 009701608
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | JAN 01, 1962 | 00-970-1608 | 27565 ( VALVE, REGULATING, FLUID PRESSURE ) |
REFERENCE DRAWINGS & PICTURES
PLAIN

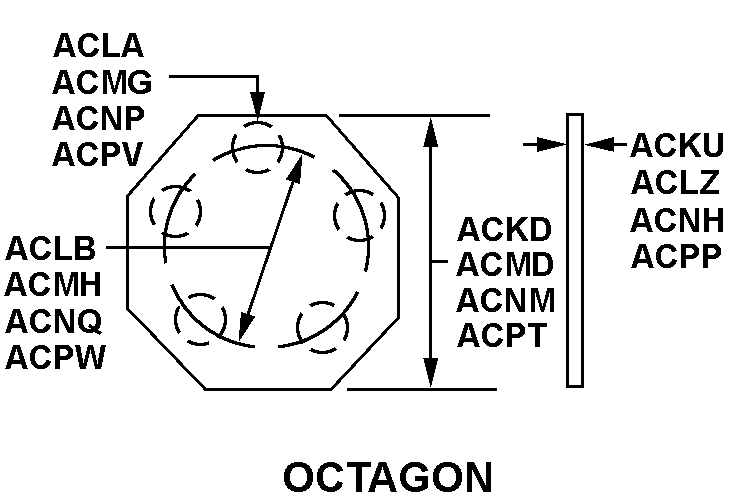

OCTAGON W/ BOLT HOLES
PLAIN
OCTAGON W/ BOLT HOLES
PLAIN
PLAIN
Cross Reference | NSN 4810-00-970-1608
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 108388-1-1 | 72599 | ALLIEDSIGNAL INCDBA ALLIED-SIGNAL AEROSPACE CO |
| 32-58029-9 | 76301 | BOEING COMPANY, THEDBA BOEING |
| 108388-2-1 | 99193 | HONEYWELL INTERNATIONAL INC.DBA HONEYWELL |
| 108388-1-1 | 99193 | HONEYWELL INTERNATIONAL INC.DBA HONEYWELL |
| 108388-1-1 | 70210 | HONEYWELL INTERNATIONAL INC.DBA HONEYWELL |
Technical Data | NSN 4810-00-970-1608
| Characteristic | Specifications |
|---|---|
| TEMP RATING | -65.0 DEG FAHRENHEIT MINIMUM AND 400.0 DEG FAHRENHEIT MAXIMUM |
| MAXIMUM INLET PRESSURE RATING | 160.0 POUNDS PER SQUARE INCH |
| SPECIAL FEATURES | VALVE HAS 7 PORTS |
| FLOW CONTROL DEVICE | DISK, CIRCULAR |
| FIRST END CONNECTION TYPE | PLAIN FACE FLANGE |
| FIRST END STYLE DESIGNATOR | PLAIN |
| FIRST END FLANGE SHAPE STYLE | OCTAGON W/ BOLT HOLES |
| FIRST END BOLT HOLE QUANTITY | 4 |
| FIRST END FLANGE LENGTH | 2.370 INCHES NOMINAL |
| FIRST END FLANGE WIDTH | 2.370 INCHES NOMINAL |
| FIRST END BOLT HOLE DIAMETER | 0.281 INCHES NOMINAL |
| FIRST END CENTER TO CENTER DISTANCE BETWEEN HOLES ALONG LENGTH | 1.812 INCHES NOMINAL |
| FIRST END CENTER TO CENTER DISTANCE BETWEEN HOLES ALONG WIDTH | 1.812 INCHES NOMINAL |
| MEDIA FOR WHICH DESIGNED | AIR |
| REGULATION TYPE | AUTOMATIC SINGLE STAGE |
| VALVE LOADING METHOD | SPRING |
