NSN 4810-00-972-8923
Part Details | SPECIAL SHAPED ACTUATOR VALVE DIAPHRAGM
4810-00-972-8923 An item constructed of one or more layers of thin flexible material, either laminated or separated, designed to form a tight seal between the chambers of a valve, and to transmit pressure inducted motion to a valve disk either directly or through a mechanical linkage. The surface of the item must be formed or molded to have a beaded or rolled edge, ribs or any other raised surfaces. The item may contain bolt holes and/or center holes. Excludes DIAPHRA GM, VALVE, FLAT and GASKET.
Alternate Parts: GV3899922, GV38-999-22, AV76259PC12, AV76-259PC12, 4810-00-972-8923, 00-972-8923, 4810009728923, 009728923
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | JAN 01, 1962 | 00-972-8923 | 40088 ( DIAPHRAGM, ACTUATOR VALVE, SPECIAL SHAPED ) |

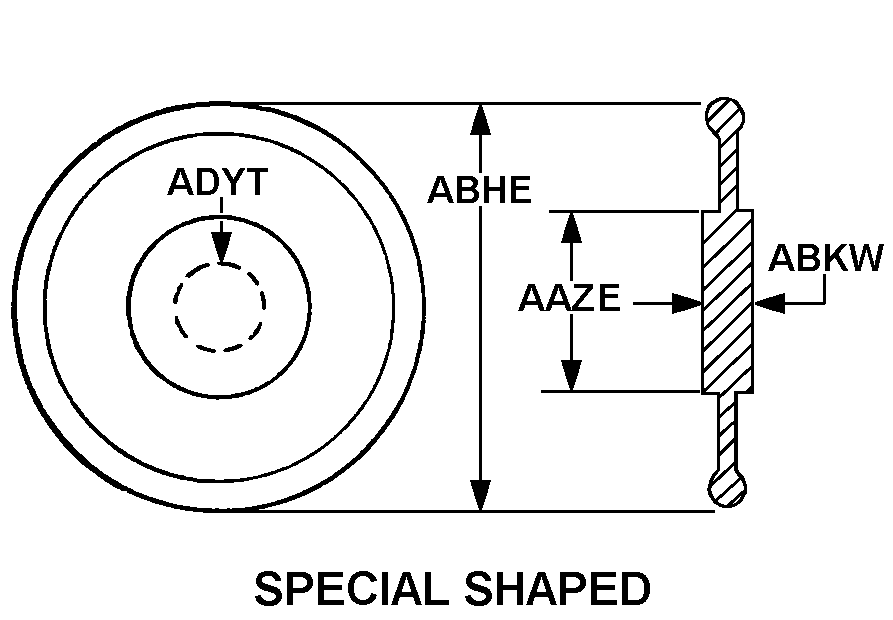

REFERENCE DRAWINGS & PICTURES
H
Cross Reference | NSN 4810-00-972-8923
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| GV38-999-22 | 04845 | AUTOMATIC SWITCH COMPANY |
| AV76-259PC12 | 04845 | AUTOMATIC SWITCH COMPANY |
Technical Data | NSN 4810-00-972-8923
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER SYNTHETIC |
| STYLE DESIGNATOR | H |
| SHANK DIAMETER | 1.188 INCHES NOMINAL |
| OUTSIDE DIAMETER | 2.000 INCHES NOMINAL |
| OVERALL HEIGHT | 0.178 INCHES NOMINAL |
| CENTER HOLE DIAMETER | 0.200 INCHES NOMINAL |
| SPECIAL FEATURES | BRASS INSERT IN CENTER |
