NSN 4810-01-029-5144
Part Details | FLUID PRESSURE REGULATING VALVE
4810-01-029-5144 A valve designed to automatically maintain within close limits a predetermined outlet pressure which may be adjustable within a specified range regardless of the higher fluctuating or constant inlet pressure. It is designed for use with compressed gas(es) and various liquids and may include gauges. It may be inline or cartridge (manifold) design. Excludes REGULATOR, PRESSURE, MEDICAL GAS ADMINISTRATION APPARATUS; REGULATOR, OXYGEN, BAROMETRIC CONTINUOUS FLOW; REGULATOR, OXYGEN DEMAND; REGULATOR, OXYGEN DILUTER DEMAND; and valve(1), fluid pressure regulating, aircraft.
Alternate Parts: 2911151, 4810-01-029-5144, 01-029-5144, 4810010295144, 010295144
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | OCT 17, 1976 | 01-029-5144 | 27565 ( VALVE, REGULATING, FLUID PRESSURE ) |
REFERENCE DRAWINGS & PICTURES
PLAIN

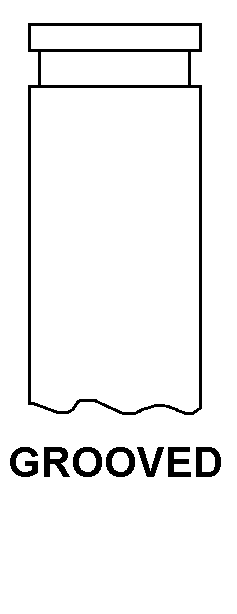

GROOVED
PLAIN
GROOVED
PLAIN
GROOVED
PLAIN
GROOVED
Cross Reference | NSN 4810-01-029-5144
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2911151 | 99221 | TAVCO INC. |
Technical Data | NSN 4810-01-029-5144
| Characteristic | Specifications |
|---|---|
| TEMP RATING | -65.0 DEG FAHRENHEIT MINIMUM AND 160.0 DEG FAHRENHEIT MAXIMUM |
| OUTLET PRESSURE SETTING | 2500.0 POUNDS PER SQUARE INCH |
| FILTER | INCLUDED |
| FLOW CONTROL DEVICE | POPPET |
| END CONNECTION QUANTITY | 2 |
| FIRST END CONNECTION TYPE | UNTHREADED EXTERNAL TUBE |
| FIRST END STYLE DESIGNATOR | PLAIN |
| SECOND END RELATIONSHIP WITH FIRST END | NOT IDENTICAL |
| SECOND END CONNECTION TYPE | UNTHREADED EXTERNAL TUBE |
| SECOND END STYLE DESIGNATOR | GROOVED |
| MEDIA FOR WHICH DESIGNED | MONOCHLORODIFLUOROMETHANE |
| RENEWABLE SEAT RING TYPE | ANY ACCEPTABLE |
| REGULATION TYPE | AUTOMATIC SINGLE STAGE |
| VALVE STEM DESIGN | SINGLE SEAT |
| VALVE LOADING METHOD | SPRING |
| REMOTE ACTUATION METHOD | SOLENOID |
