NSN 4810-01-033-9667
Part Details | SOLENOID VALVE
4810-01-033-9667 A valve having two or more ports with valve stem or pilot needle in a normally open or closed position. It is specifically designed to stop or start or change the flow of fluid by means of the magnetic action of an electric coil on a moveable core or plunger. The valve may be equipped with a manual opening or closing device. For items with three or more ports that utilize a reciprocating slide with recess areas which mate with ports in an integral or replaceable ported sleeve, see VALVE (1), LINEAR, DIRECTIONAL CONTROL. It may be inline or cartridge (manifold) design. Excludes VALVE (1), BUTTERFLY.
Alternate Parts: DHS650324V06, DH-S-6503-24V-06, 12253777, 4810-01-033-9667, 01-033-9667, 4810010339667, 010339667
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | JAN 15, 1977 | 01-033-9667 | 10998 ( VALVE, SOLENOID ) |
REFERENCE DRAWINGS & PICTURES

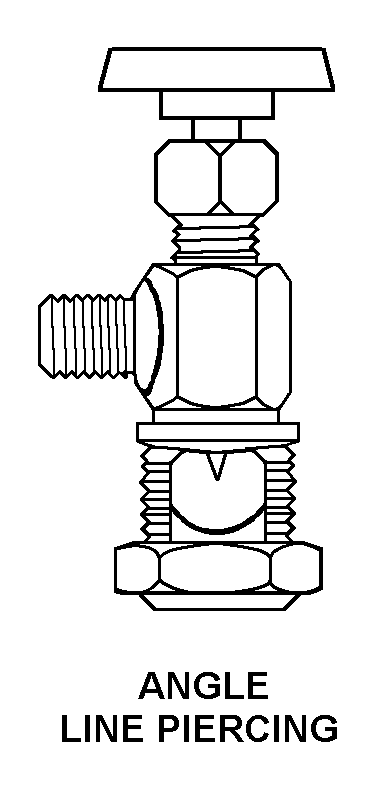

ANGLE LINE PIERCING
Cross Reference | NSN 4810-01-033-9667
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| DH-S-6503-24V-06 | 81833 | TRANSDIGM, INC.DBA AEROCONTROLEX |
| 12253777 | 19200 | US ARMY ARDEC RDECOM |
Technical Data | NSN 4810-01-033-9667
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | ANGLE LINE PIERCING |
| VALVE OPERATION METHOD | SOLENOID |
| POWER DRIVE OPERATING PRESSURE | 135.0 POUNDS PER SQUARE INCH MINIMUM AND 1750.0 POUNDS PER SQUARE INCH MAXIMUM |
| VOLTAGE IN VOLTS AND CURRENT TYPE | 18.0 DC AND 30.0 DC |
| FLOW CONTROL DEVICE NORMAL OPERATION POSITION | OPEN |
| SPECIAL FEATURES | MATERIALS:VALVE COMPONENT MATERIALS TO BE COMPATIBLE WITH THE SPECIFIEDTEMPERATURES,PRESSURES AND FLUID; THEMETALS SHALL POSSESS ADEQUATE CORROSION RESISTANT CHARACTERISTICS OR SHALL BE PROTECTED BY THE USE OF SUITABLE COATINGS TO RESIST CORROSION WHICH MAY RESULT FROM DISSIMILAR METAL CONTACT MOISTURE,HIGH TEMPERATURE DEGRADATION,ETC.; RATED FLOW CAPACITY: 25 GPM; PROOF PRESSURE; 3000 PSI WITH VALVE AND PACKINGS MOUNTED TO A SIMULATED MANIFOLDWITH .750 HOLES CENTERED AT INLET AND DISCHARGE PORTS,NO EXTERNAL LEAKAGE PERMITTED; BURST PRESSURE; 4500 PSI WITHOUT FAILURE,RUPTURE OR EXTERNAL LEAKAGE; THE ELECTRICAL RECEPTACLE SHALL MATE WITH SHELL ASSY-8724233 AND BE INTERCHANGEABLE WITH RECEPTACLE-7720492; THE ELECTRICAL RECEPTACLE GASKET SHALLBE INTERCHANGEABLE WITH GASKET-MS52000-5 |
