NSN 4810-01-168-0707
Part Details | SPECIAL SHAPED ACTUATOR VALVE DIAPHRAGM
4810-01-168-0707 An item constructed of one or more layers of thin flexible material, either laminated or separated, designed to form a tight seal between the chambers of a valve, and to transmit pressure inducted motion to a valve disk either directly or through a mechanical linkage. The surface of the item must be formed or molded to have a beaded or rolled edge, ribs or any other raised surfaces. The item may contain bolt holes and/or center holes. Excludes DIAPHRA GM, VALVE, FLAT and GASKET.
Alternate Parts: F141CP, F-141-CP, 4810-01-168-0707, 01-168-0707, 4810011680707, 011680707
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | DEC 11, 1983 | 01-168-0707 | 40088 ( DIAPHRAGM, ACTUATOR VALVE, SPECIAL SHAPED ) |

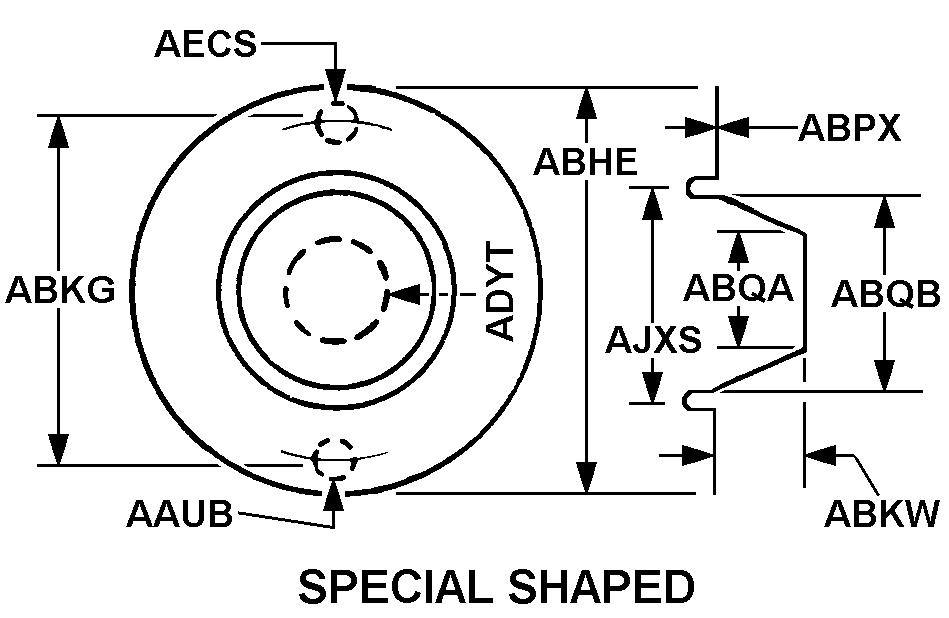

REFERENCE DRAWINGS & PICTURES
SPECIAL SHAPED
Cross Reference | NSN 4810-01-168-0707
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| F-141-CP | 71718 | COYNE AND DELANY CO |
Technical Data | NSN 4810-01-168-0707
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER CHLOROPRENE CLASS CR |
| STYLE DESIGNATOR | SPECIAL SHAPED |
| END ITEM IDENTIFICATION | DELANY FLUSHBOY CLOSET FLUSH VALVES |
