NSN 4810-01-192-5289
Part Details | FLUID PRESSURE REGULATING VALVE
4810-01-192-5289 A valve designed to automatically maintain within close limits a predetermined outlet pressure which may be adjustable within a specified range regardless of the higher fluctuating or constant inlet pressure. It is designed for use with compressed gas(es) and various liquids and may include gauges. It may be inline or cartridge (manifold) design. Excludes REGULATOR, PRESSURE, MEDICAL GAS ADMINISTRATION APPARATUS; REGULATOR, OXYGEN, BAROMETRIC CONTINUOUS FLOW; REGULATOR, OXYGEN DEMAND; REGULATOR, OXYGEN DILUTER DEMAND; and valve(1), fluid pressure regulating, aircraft.
Alternate Parts: 45886, 4588-6, 4810-01-192-5289, 01-192-5289, 4810011925289, 011925289
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | OCT 22, 1984 | 01-192-5289 | 27565 ( VALVE, REGULATING, FLUID PRESSURE ) |
REFERENCE DRAWINGS & PICTURES
STRAIGHT THRU
SWIVEL NUT, FLARE

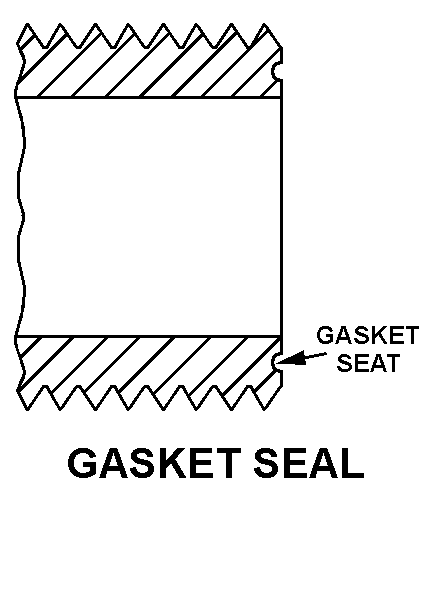

GASKET SEAL
SWIVEL NUT, FLARE
GASKET SEAL
SWIVEL NUT, FLARE
GASKET SEAL
SWIVEL NUT, FLARE
GASKET SEAL
Cross Reference | NSN 4810-01-192-5289
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 4588-6 | 06177 | PNEUDRAULICS, INC. |
Technical Data | NSN 4810-01-192-5289
| Characteristic | Specifications |
|---|---|
| BODY MATERIAL | ALUMINUM ALLOY, QQ-A-225/6, ALLOY 2024, T6 |
| TEMP RATING | -40.0 DEG FAHRENHEIT MINIMUM AND 200.0 DEG FAHRENHEIT MAXIMUM |
| MAXIMUM INLET PRESSURE RATING | 3000.0 POUNDS PER SQUARE INCH |
| FILTER | NOT INCLUDED |
| SEAT MATERIAL | STEEL, FED STD 66, AISI 440C/SAE 51440C |
| PACKING MATERIAL | PLASTIC, TETRAFLUOROETHYLENE |
| FLOW CONTROL DEVICE | PISTON, SPRING LOADED |
| FLOW CONTROL DEVICE MATERIAL | STEEL, AMS 5643 |
| OUTSIDE SURFACE TREATMENT | ANODIZED, MIL-A-8625 |
| END CONNECTION QUANTITY | 2 |
| FIRST END CONNECTION TYPE | THREADED INTERNAL TUBE |
| FIRST END STYLE DESIGNATOR | 1 SWIVEL NUT, FLARE |
| FIRST END OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.688 INCHES NOMINAL |
| FIRST END THREAD SIZE AND SERIES/TYPE DESIGNATOR | 9 TO 16-18 UNJF |
| FIRST END THREAD CLASS | 3B |
| FIRST END THREAD DIRECTION | RIGHT-HAND |
| FIRST END SEAT RADIUS | 0.062 INCHES NOMINAL |
| SECOND END RELATIONSHIP WITH FIRST END | NOT IDENTICAL |
| SECOND END CONNECTION TYPE | THREADED EXTERNAL BOSS |
| SECOND END STYLE DESIGNATOR | GASKET SEAL |
| SECOND END THREAD SIZE AND SERIES/TYPE DESIGNATOR | 9 TO 16-18 UNJF |
| SECOND END THREAD CLASS | 3A |
| SECOND END THREAD DIRECTION | RIGHT-HAND |
| BODY STYLE | STRAIGHT THRU |
| FACE TO FACE DISTANCE | 5.548 INCHES MINIMUM AND 5.639 INCHES MAXIMUM |
| REGULATION TYPE | AUTOMATIC SINGLE STAGE |
| VALVE LOADING METHOD | SPRING |
