NSN 4810-01-253-0510
Part Details | FLUID PRESSURE REGULATING VALVE
4810-01-253-0510 A valve designed to automatically maintain within close limits a predetermined outlet pressure which may be adjustable within a specified range regardless of the higher fluctuating or constant inlet pressure. It is designed for use with compressed gas(es) and various liquids and may include gauges. It may be inline or cartridge (manifold) design. Excludes REGULATOR, PRESSURE, MEDICAL GAS ADMINISTRATION APPARATUS; REGULATOR, OXYGEN, BAROMETRIC CONTINUOUS FLOW; REGULATOR, OXYGEN DEMAND; REGULATOR, OXYGEN DILUTER DEMAND; and valve(1), fluid pressure regulating, aircraft.
Alternate Parts: HP14T11A, HP14T11-A, 4810-01-253-0510, 01-253-0510, 4810012530510, 012530510
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | APR 11, 1987 | 01-253-0510 | 27565 ( VALVE, REGULATING, FLUID PRESSURE ) |
REFERENCE DRAWINGS & PICTURES
TEE

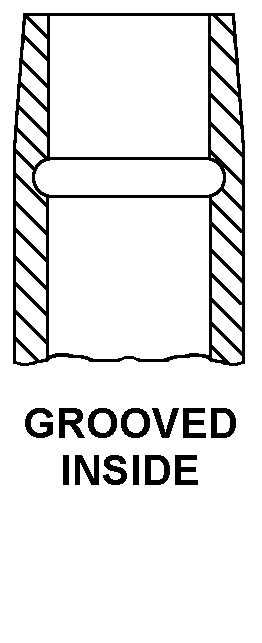

GROOVED INSIDE
GROOVED INSIDE
GROOVED INSIDE
GROOVED INSIDE
Cross Reference | NSN 4810-01-253-0510
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| HP14T11-A | 70255 | EMERSON ELECTRIC COALCO CONTROLS DIV |
Technical Data | NSN 4810-01-253-0510
| Characteristic | Specifications |
|---|---|
| BODY MATERIAL | BRASS |
| TEMP RATING | 100.0 DEG FAHRENHEIT NOMINAL |
| FILTER | NOT INCLUDED |
| SPECIAL FEATURES | VALVE SIZE 1.375 IN. |
| FLOW CONTROL DEVICE | DISK |
| END CONNECTION QUANTITY | 3 |
| FIRST END CONNECTION TYPE | UNTHREADED INTERNAL TUBE |
| FIRST END STYLE DESIGNATOR | GROOVED INSIDE |
| FIRST END OUTSIDE DIAMETER TUBE ACCOMMODATED | 1.375 INCHES NOMINAL |
| SECOND END RELATIONSHIP WITH FIRST END | IDENTICAL |
| THIRD END RELATIONSHIP WITH PRECEDING ENDS | IDENTICAL WITH FIRST END |
| BODY STYLE | 2 TEE |
| CENTER TO CENTER DISTANCE | 1.781 INCHES NOMINAL |
| MEDIA FOR WHICH DESIGNED | JG ACETYLENE |
| REGULATION TYPE | AUTOMATIC SINGLE STAGE |
| VALVE LOADING METHOD | DOME |
