NSN 4810-01-261-7936
Part Details | BALL VALVE
4810-01-261-7936 A multi-ported, nonlubricated valve designed to provide straight through flow or ability to direct a number of flows or pressure through a single valve. The flow is controlled by the rotation of a ported ball within a suitable ported seat(s). The ball is usually engaged by a stem. It is normally operated in an open or closed position. Excludes VALVE, CHECK.
Alternate Parts: B98A2212X412F, B-98-A-2-2-1/2X4-1/2F, B97A22 12F4 12F, B-97A-2-2 1/2F-4 1/2F, B97A, B-97A, 4810-01-261-7936, 01-261-7936, 4810012617936, 012617936
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | AUG 19, 1987 | 01-261-7936 | 20962 ( VALVE, BALL ) |
REFERENCE DRAWINGS & PICTURES

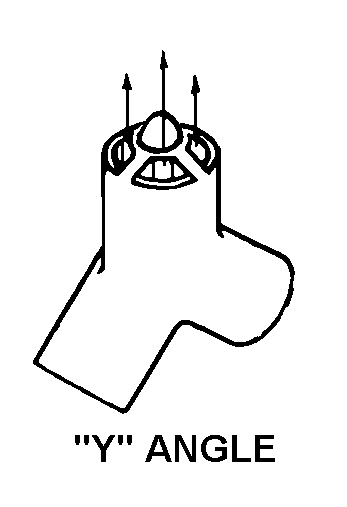

Y ANGLE
Cross Reference | NSN 4810-01-261-7936
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| B-98-A-2-2-1/2X4-1/2F | 20266 | ELKHART BRASS MANUFACTURING COMPANYINC |
| B-97A-2-2 1/2F-4 1/2F | 20266 | ELKHART BRASS MANUFACTURING COMPANYINC |
| B-97A | 20266 | ELKHART BRASS MANUFACTURING COMPANYINC |
Technical Data | NSN 4810-01-261-7936
| Characteristic | Specifications |
|---|---|
| SURFACE TREATMENT | ANODIZE |
| STYLE DESIGNATOR | "Y" ANGLE |
| VALVE OPERATION METHOD | AUTOMATIC |
