NSN 4820-00-054-8523
Part Details | PNEUMATIC TANK VALVE
4820-00-054-8523 A valve, designed for attachment to pressure tanks and/or mechanical equipment for the purpose of permitting an increase, decrease, and the gaging of pressure (similar to tire valves) within a confining chamber carrying compressed air, gases or oil.
Alternate Parts: 2620420BB61414, 26-20420BB614-14, SK2042100BB614, SK2042-100BB614, 013313900, 013-3139-00, 4820-00-054-8523, 00-054-8523, 4820000548523, 000548523
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | JAN 01, 1961 | 00-054-8523 | 06509 ( VALVE, PNEUMATIC TANK ) |
REFERENCE DRAWINGS & PICTURES

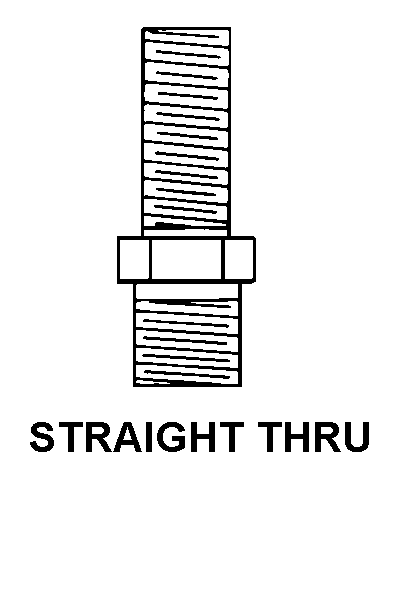

STRAIGHT THRU
PLAIN
GASKET SEAL
PLAIN
GASKET SEAL
PLAIN
GASKET SEAL
PLAIN
GASKET SEAL
Cross Reference | NSN 4820-00-054-8523
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 26-20420BB614-14 | 17875 | EATON CORPORATIONDBA AIR CONTROLS DIVISION DIV AIR |
| SK2042-100BB614 | 17875 | EATON CORPORATIONDBA AIR CONTROLS DIVISION DIV AIR |
| 013-3139-00 | 13499 | ROCKWELL COLLINS, INC.DBA GOVERNMENT SYSTEMS |
Technical Data | NSN 4820-00-054-8523
| Characteristic | Specifications |
|---|---|
| BODY STYLE | STRAIGHT THRU |
| BODY MATERIAL | BRASS |
| OUTSIDE SURFACE TREATMENT | NICKEL, QQ-N-290, CLASS 1, TYPE 7 |
| SEAT MATERIAL | BRASS |
| FLOW CONTROL DEVICE | CORE |
| FLOW CONTROL DEVICE MATERIAL | ANY ACCEPTABLE |
| END CONNECTION QUANTITY | 2 |
| FIRST END CONNECTION TYPE | THREADED EXTERNAL PIPE |
| FIRST END STYLE DESIGNATOR | PLAIN |
| FIRST END NOMINAL PIPE SIZE ACCOMMODATED | 0.125 INCHES |
| FIRST END THREAD DIRECTION | RIGHT-HAND |
| SECOND END RELATIONSHIP WITH FIRST END | NOT IDENTICAL |
| SECOND END CONNECTION TYPE | THREADED EXTERNAL BOSS |
| SECOND END STYLE DESIGNATOR | GASKET SEAL |
| SECOND END THREAD DIRECTION | RIGHT-HAND |
| CORE ENVIRONMENTAL PROTECTION | CORROSION AND OIL RESISTANT |
| COMMERCIAL CORE LENGTH DESIGNATOR | SHORT |
| SPRING MATERIAL | STEEL, CORROSION RESISTING |
| COMMERCIAL SPRING TENSION RATING | MEDIUM |
| FURNISHED ITEMS | CAP |
