NSN 4820-00-063-0410
Part Details | EXPANSION VALVE
4820-00-063-0410 A self-acting valve specifically designed for use in refrigeration systems for continual control of rate of flow of refrigerant. It may be actuated by a thermostatic element or self-actuated.
Alternate Parts: 90C0169323, 90C01-6932-3, TCLE12FC12SAEX58SAEANGLE, TCLE1/2FC1/2SAEX5/8SAEANGLE, TCLE12FW, TCLE-1/2-FW, TCLE 12FC(12SEX58SAEANG), TCLE 1/2FC(1/2SEX5/8SAEANG), HCE12FC, HC-E-1/2-FC, 4820-00-063-0410, 00-063-0410, 4820000630410, 000630410
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | MAY 28, 1986 | 00-063-0410 | 05493 ( VALVE, EXPANSION ) |
REFERENCE DRAWINGS & PICTURES

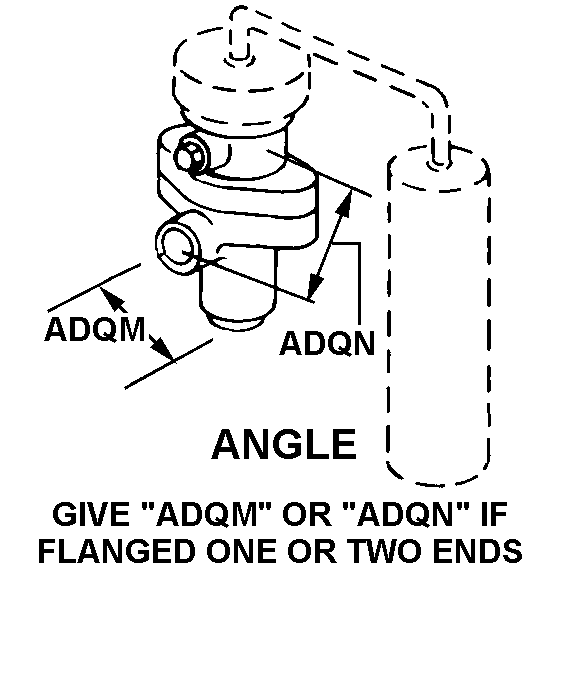

ANGLE GIVE "ADQM" OR "ADQN" IF FLANGED ONE OR TWO ENDS
FLARED
FLARED
FLARED
FLARED
Cross Reference | NSN 4820-00-063-0410
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 90C01-6932-3 | 10855 | CARRIER CORPORATION |
| TCLE1/2FC1/2SAEX5/8SAEANGLE | 70255 | EMERSON ELECTRIC COALCO CONTROLS DIV |
| TCLE-1/2-FW | 70255 | EMERSON ELECTRIC COALCO CONTROLS DIV |
| TCLE 1/2FC(1/2SEX5/8SAEANG) | 70255 | EMERSON ELECTRIC COALCO CONTROLS DIV |
| HC-E-1/2-FC | 70255 | EMERSON ELECTRIC COALCO CONTROLS DIV |
Technical Data | NSN 4820-00-063-0410
| Characteristic | Specifications |
|---|---|
| BODY MATERIAL | BRASS, ASTM B124, ALLOY NO. 2 |
| BODY STYLE | ANGLE GIVE "ADQM" OR "ADQN" IF FLANGED ONE OR TWO ENDS |
| REFRIGERATION CAPACITY IN BTU PER HOUR | 6.0 |
| VALVE EQUALIZER LOCATION | EXTERNAL |
| VALVE EXPANSION CONTROL TYPE | THERMOSTATIC |
| VALVE PRESSURE LIMITING DEVICE | NOT INCLUDED |
| TEMP RATING | 250.0 DEG FAHRENHEIT |
| FLOW CONTROL DEVICE | X ANY ACCEPTABLE |
| FLOW CONTROL DEVICE MATERIAL | STEEL |
| STEM MATERIAL | STEEL |
| END CONNECTION QUANTITY | 2 |
| FIRST END CONNECTION TYPE | THREADED EXTERNAL TUBE |
| FIRST END STYLE DESIGNATOR | FLARED |
| FIRST END OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.500 INCHES NOMINAL |
| FIRST END THREAD CLASS | 2A |
| FIRST END THREAD PITCH DIAMETERS | +0.7029 TO +0.7079 INCHES |
| FIRST END THREAD DIRECTION | RIGHT-HAND |
| FIRST END SEAT ANGLE IN DEG | 45.0 |
| SECOND END RELATIONSHIP WITH FIRST END | NOT IDENTICAL |
| SECOND END CONNECTION TYPE | THREADED EXTERNAL TUBE |
| SECOND END STYLE DESIGNATOR | FLARED |
| SECOND END OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.625 INCHES NOMINAL |
| SECOND END THREAD CLASS | 2A |
| SECOND END THREAD PITCH DIAMETERS | +0.5720 TO +0.5771 INCHES |
| SECOND END THREAD DIRECTION | RIGHT-HAND |
| SECOND END SEAT ANGLE IN DEG | 45.0 |
| VALVE EVAPORATOR TEMP RANGE DESIGNATION | HIGH |
| BULB MEDIA TYPE | REFRIGERANT 12 |
| CAPILLARY TUBE LENGTH | 120.000 INCHES NOMINAL |
| BULB MOUNTING METHOD | CLAMP |
| VALVE EQUALIZER CONNECTION TYPE | FLARED TUBE |
| VALVE EQUALIZER CONNECTION DIAMETER | 0.250 INCHES NOMINAL |
